Apollo Rimini Chrome Wave Tube-on-Tube Vertical Radiator 500 x 1800mm



RRP: £1260.00 You Save £290.96 on RRP


3 Working Days Approx

Shipping: FREE

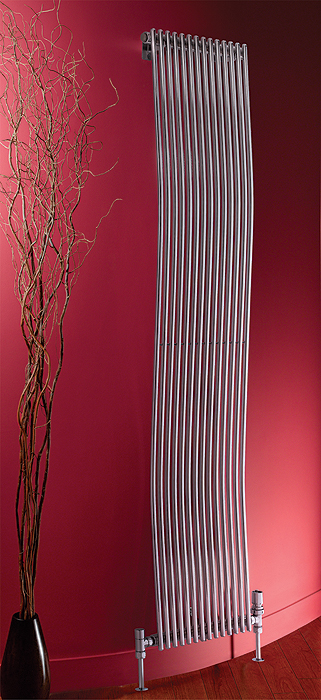

For a radiator that demonstrates your appreciation for modern design look no further than Apollo's Rimini Chrome Wave Tube on Tube Vertical Radiator. The 18 tube wave design makes for a stunning focal point that transforms radiator design into an art form. Measuring 1800mm x 500mm and delivering effective heating output, this spectacular radiator is sure to please.

+  Read what's included.. & options available

Please Note all the measurements are in 'mm'
Colour Chrome
Country of Origin EU
Warranty/Guarantee 5 Years
Material Steel
Theme Modern
Projection (Depth) 125
Width 500
Height 1800
Orientation Vertical
BTU Output 3016
Watts 884
No. Of Bars 18
Tapping / Pipe Centres 280
Valves Included Sold Separately
Wall to Centre of Inlet 55
Tube Diameter 16
  • Radiator
  • Width: 500
  • Height: 1800



  • Dimension:
  • Width: 500mm
  • Height: 1800mm
  • Heat output: 884 Watts
  • BTU: 3016
  • Made from steel
  • Number of tubes: 18
  • Tube diameter : 16mm
  • Can be installed vertically or horizontally
  • Side entry for vertical
  • Bottom entry for horizontal
  • Image is for illustration purpose only
  • Made in Italy

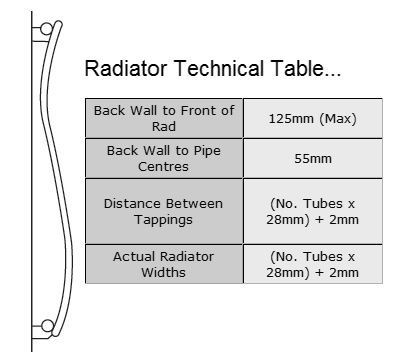

  • Back wall to front - 125mm maximum
  • Back wall to pipe centres - 55mm
  • Distance between tappings - 280mm
  • Bracket position - Top : 25mm, Bottom : 1785mm
  • EN442 Outputs ?T50C
  • Correction factor to ?T60C = 1.2675
  • Manufacturing code of this product is RWC18H18T
  • 5 years of guarantee from the manufacturer
  • Refer technical PDF for more technical specification.
  • Valves available separately  [See option below]
  • Tails And Floor Plate Kit  [See option below]
  • For horizontal Installation:
  • It can also be mounted horizontally, in white or chrome not colours. Please specify as a different bracket set is required.

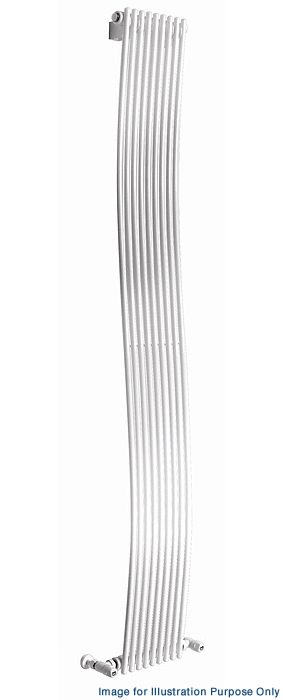

Note : Image is for Illustration Purpose Only


Valves Optional

Valves Optional

Choose from a range of chrome finish 15mm valves to compliment your space and design. All valves sold as sets. Please Note: Image shown is for illustration purpose only.

Tails and Floor Plate Kit

Tails and Floor Plate Kit

For a luxurious and stylish appearance add this chrome tails and floor plate kit. Please Note: Image shown is for illustration purpose only.

Sizes Available
Other Sizes / Finishes / Variations Available.
QS Code Finish Size / Difference MFC Code
QS-V35520 White - RWW18H18T
