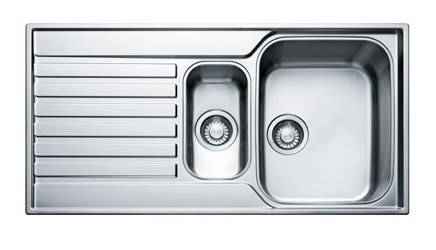

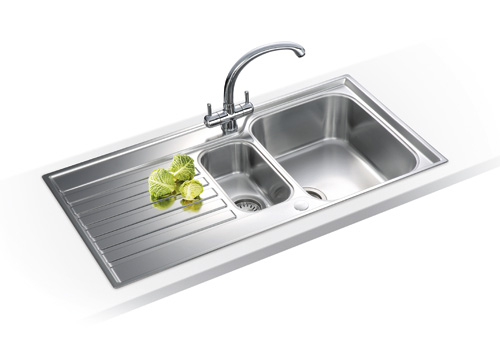

Franke Ascona ASX 651 Stainless Steel 1.5 Bowl Kitchen Inset Sink

QS-V22299 MFC CODE: 1010277124 BOM

£167.01

RRP: £238.58 You Save £71.57 on RRP

4.0 out of 5

3 out of 3 customers rated 80%

Review this Product

STOCK AVAILABILITY

5 Working Days Approx

Shipping: £6.99


Description
Technical

Spruce up your kitchen with Frankes smart and stylish Ascona ASX 651 1.5 Bowl Sink. Its pragmatic design is shaped and formulated using nickel steel and presented in a lustrous silk finish. It is devised to facilitate a reversible position of its drainer; a slim top profile helps it beautifully flush fit the worktop with its edge sitting flat on the surface. A special feature of this product is the revolutionary Slimfix clip system that holds the sink firmly to the work surface without the use of clamps, fixing rails or screws.

+  Read what's included.. & options available

Please Note all the measurements are in 'mm'
Colour Silk
Installation/Style Inset
Number of Bowls 1.5
Drainer Position Reversible
Small Bowl Position Reversible
Overall Length 1000
Overall Width 510
Minimum Base Unit Size Required 600
Length of Main Bowl 350
Width of Main Bowl 435
Depth of Main Bowl 175
Length of Small Bowl 160
Width of Small Bowl 300
Depth of Small Bowl 120
Cut-Out Length 980
Cut-Out Width 490
Material Stainless Steel
Profile Slim-Top
Plumbing Kit Sold Separately
Compatible With Optional Waste Disposal Unit Yes
Overflow Type Patented Hygienic
Waste Included Yes
Waste Type Basket Strainer
Waste Hole Size 90
No. of Tap Holes 2
Warranty/Guarantee 50 Years

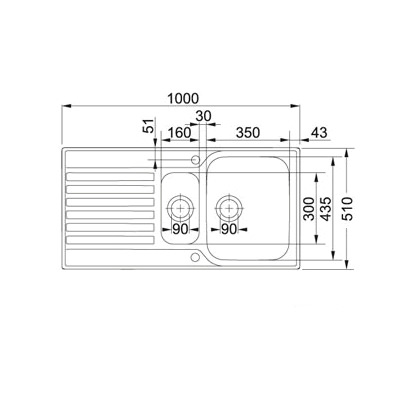

INFO / SIZE (mm)

  • Sink
  • Length: 1000
  • Width: 510

HIGHLIGHTS

  • Comes in Silk finish
  • Inset installation [frame sits on top of the worksurface, compatible with any worksurface, including laminate worktops]
  • Sizes Denotes: Length [Left to Right] x Width [Front to Back] x Depth [Top to Bottom]
  • Overall size is - Length 1000mm x Width 510mm
  • Size of big bowl is - Length 350mm x Width 435mm x Depth 175mm
  • Size of small bowl is - Length 160mm x Width 300mm x Depth 120mm
  • Cabinet size is 600mm [denotes the measurement which the bowl need to fit into]
  • Cut-out size is - Length 980mm x Depth 490mm x Corner Radius 10mm
  • Features and Specification:
  • Reversible drainer position
  • Position of Small Bowl: Reversible
  • Slim-top profile [edge sits flat on the surface of the worktop]
  • Incorporates the revolutionary Slimfix clip® system
  • Equipped with stainless steel basket strainer waste [prevent foodstuffs from entering the waste system]
  • Patented hygienic overflow [offers versatility for cleaning by simply removing the overflow aperture for easy, hygienic cleaning]
  • Made using best quality nickel steel [highly resistant to staining, rust and corrosion - plus it won’t chip, craze, flake or break]
  • Compatible for use with optional waste disposal unit
  • Manufacturing code is 101.0277.124
  • 50 years of guarantee from the manufacturer against any manufacturing defects
  • Please watch or download video from technical tab showing the installation
  • Optional Products: Plumbing Kit, Turbo Plus TP-50 Waste Disposal Unit and Accessories.

Slimfix® - A revolutionary fixing system holds the sink firmly to the work surface without the use of clamps, fixing rails, or screws, thus making the task of installer, comprehensively simple. Without the requirement of under-sink fittings, this can be simply dropped into the cut-out, and the exquisite one-way gripping anchor under the rim, fixes it tightly in place. Slimfix technology has enabled the designers, to comprehensively reduce the size and profile of the outer rim, and in result, this virtually appears to be flush with the worktop.
Cleaning Tips:
Discolouration and most marks on stainless steel are caused by water-borne deposits clinging to its surface. They are always the result of an outside source rather than coming from the steel itself. Such stains are often seen as a “rainbow-effect” and can be avoided completely by removing wet cleaning aids [cloths, containers etc.] from the sink after use so as to avoid watermarking and rust stains. One of the best ways to care is to clean it with a product called ‘Shiny Sinks’ [available from most major supermarkets] which can be used daily. It is helpful to dry thoroughly after cleaning.
Avoid: The use of plastic bowls for washing up, as these cause heavy localised scratching. Leaving salt, vinegar, citric fruit juices, mustard or pickles on the surface for any length of time as they can cause corrosion. Abrasive cleaners such as bleach, scourers or wire wool pads.


CUSTOMISE YOUR PRODUCT

Tap For Sink

Tap For Sink

Matching kitchen sink mixer tap from the house of Franke to suit your sink. Please note: Image shown is for illustration purpose only.

Siphon Plumbing Kit

Siphon Plumbing Kit

It is the perfect plumbing solution and have a manifold with an incline and an air vent for faster water disposal. Made of rigid grey polypropylene, these kit is the hygienic solution to a Franke waste system.

Waste Disposal Unit

Waste Disposal Unit

Free kitchen from unsightly and unhygienic organic household waste. Magnet motor of this unit reach high speed in a split second, whilst running water through the unit, food waste is liquefied into fine particles and easily flushed through the pipework.

Tap Brace

Tap Brace

Franke has developed an innovative patented new tap brace for large or heavy taps, which may require additional support when fitted to a stainless steel sink. A perfect solution to the occasional problem of flexing.

Total: £167.01 5 Working Days ApproxQS Supplies

You've Selected which adds to a total of



REVIEWS & RATINGS

Here's what people are saying about this item.

Rate this Item.:

Hide All Reviews

Newbury Date: March 10, 2016

Nice, but bowl scratches very easily
Nice looking sink, relatively easy to install, looks good. Bowl is big, without being to big if that makes sense. Bad bits, the bowl scratches very easily so the inside is already more scratched then our 10 year old bowl in our previous house, also the fixing claws are use once only, which makes it difficult to centre the bowl properly or a nightmare if you find out that the hole is not quite big enough at one point......
3 Star

Helpful? Hands Up Hands Down
3 of 5 People have found this Review useful

OVERALL RATING 3 Stars

  • Quality: 2 Stars
  • Value For Money: 3 Stars
  • Style: 5 Stars

MARTOCK Date: June 13, 2015

Franke sink
The sink has been scratched quite a bit and I have been careful with it. But it does what it claims to do I just wish it did not scratch, as it does. You have to put metal knives and forks in your sink and pots and pans so it should be good enough to take these without scratching. But I have always had Franke, but maybe cheaper ones are just as good.
3 Star

Helpful? Hands Up Hands Down

OVERALL RATING 3 Stars

  • Quality: 3 Stars
  • Value For Money: 3 Stars
  • Style: 4 Stars

Tamworth Date: June 15, 2015

ASX 651
Excellent product, i highly recommended that the waste kit is purchased and the tap brace. Looks good and very durable. Cleans easy and fitting is not to bad. With waste kit the area under sink is better as no u bend directly below.
5 Star

Helpful? Hands Up Hands Down
4 of 6 People have found this Review useful

OVERALL RATING 5 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars

Date: June 9, 2013

Amazingly speedy delivery, arrived next day! Quality Franke sink at a bargain price. Easy to install into wooden worktops, looks quality, nice brushed stainless steel finish, large bowl. Great. Very pleased.
0 Star

Helpful? Hands Up Hands Down
13 of 15 People have found this Review useful

OVERALL RATING 0 Stars

  • Quality: 0 Stars
  • Value For Money: 0 Stars
  • Style: 0 Stars

York Date: March 10, 2016

ASX 651
Just what we hoped for it fits into the work top perfectly. It has an excellent finish and is so easy to keep clean. It just oozess quality we are so pleased we bought it.
5 Star

Helpful? Hands Up Hands Down

OVERALL RATING 5 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars

uk Date: September 20, 2015

Great product
Received the item with no issues, was well packaged. Product is great size wise, however the steel does scratch quite easily. Overall still pleased with this product.
4 Star

Helpful? Hands Up Hands Down

OVERALL RATING 4 Stars

  • Quality: 4 Stars
  • Value For Money: 4 Stars
  • Style: 5 Stars

Adlington , Chorley Date: March 10, 2016

Frake Sink and plumbing kit
The sink is of very good quality excellent finish . It was straightforward to order and was delivered without any problems .
5 Star

Helpful? Hands Up Hands Down

OVERALL RATING 5 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars

poole Date: January 11, 2016

Stainless steel sink
Nice looking, good size, poorly designed in as much as too many angles make it very difficult to keep clean
3 Star

Helpful? Hands Up Hands Down
5 of 9 People have found this Review useful

OVERALL RATING 3 Stars

  • Quality: 3 Stars
  • Value For Money: 3 Stars
  • Style: 4 Stars

Highgate Date: September 14, 2015

Excellent value
Very pleased with our new sink - it works well! Not much else to add really…….
3 Star

Helpful? Hands Up Hands Down

OVERALL RATING 3 Stars

  • Quality: 4 Stars
  • Value For Money: 4 Stars
  • Style: 3 Stars

Dundee Date: September 20, 2015

Frankie sink
Excellent service. Slight problem with sink but resolved very quickly. 5 *
5 Star

Helpful? Hands Up Hands Down

OVERALL RATING 5 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars

Bishop's Stortford Date: March 10, 2016

Just the job..
No problems as yet. In use with spray type tap which is very useful.
4 Star

Helpful? Hands Up Hands Down

OVERALL RATING 4 Stars

  • Quality: 5 Stars
  • Value For Money: 4 Stars
  • Style: 4 Stars

Norwich Date: September 20, 2015

posh sink
very good quality, easy to fit & price
5 Star

Helpful? Hands Up Hands Down
2 of 4 People have found this Review useful

OVERALL RATING 5 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars

Sheffield Date: March 10, 2016

Good product
Good product
5 Star

Helpful? Hands Up Hands Down

OVERALL RATING 5 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars





Questions & Answers

  Submit Your Questions 2 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Does this sink come with the waste?

Answered By QS Team :
Hi Mary, The Franke Sink comes with waste fitting.

Was this answer helpful? Yes - No

1   0



Hi, Just opened my franke ascona asx651 but there are no fitting instructions, can you please send me a link to the instructions and details of how to seal the unit to a worktop as there is no adhesive foam tape either.

Answered By Jon :
I don't know of any instructions for it but do be very careful when fitting this sink. Make sure the hole in the worktop is accurate as you haven't got a big lip around the edge, but once you drop the sink in, the clips on it make it very secure and you have a very difficult job in getting it out again. The best way to seal it is to run a bead of silicone around the edge of your hole before you drop the sink in and then if necessary run another bead around the end of the sink after its fitted.

Answered by Verified Purchaser Was this answer helpful? Yes - No

3 - 0


Answered By Christine :
Sorry can't answer this ours was fitted by a kitchen fitter as part of a new kitchen.

Answered by Verified Purchaser Was this answer helpful? Yes - No

2 - 0

Answered By Simon :
Michael. Cut-out a window in the worktop about 20mm smaller than the outside edge. The clips should be there. Use clear silicone sealant during clamping down, wiping down the excess. Refer to Youtube for full instructions of similiar Franke product installations. Good Luck. Simon.

Answered by Verified Purchaser Was this answer helpful? Yes - No

1 - 0


Answered By Stuart :
Hi Michael . My name is Stuart and I've been asked to answer your question as a previous purchaser of the sink. Firstly I'm a kitchen fitter and have fitted several of these sinks and it's not difficult. There are no fixings or tape as the sink has self fixing barbs on the sides to grip the worktop cut sides and a good quality clear anti bacterial silicone should be used. I spread the silicone over the cut edges of the worktop to help seal the raw chipboard and place a continuous bead around the edge to m press the sink intl. Remember to measure the squareness of the sink to the outside edge of the worktop and not the wall. The cutout must be smaller than the overall dimensions of the sink by Al least 10mm each way. I drill a large bore hole in each corner and then use my jig saw following a straight edge to cut the edges. If you need any more help you can email me at stumorystrad@aol.com good luck !!!!

Answered by Verified Purchaser Was this answer helpful? Yes - No

1 - 0


Answered By Gordon :
Hi Michael I install frankie sinks regularly and I can pass on my technique. Simply place sink upside down on worktop and make sure you are clear for fitting within unit below, mark all four corners in pencil then remove sink then measure ten millimetres inside those marks and join the lines in marker pen. Then go ahead and cut the sink area out with a jigsaw leaving a 10mm radius at each corner. Once cut out seal entire exposed edge with silicone sealant or contact adhesive, place a bead of silicone around the perimeter of the cut out about 6mm in diameter then place sink in opening and push firmly down in place.

Answered by Verified Purchaser Was this answer helpful? Yes - No


Answered By Jackie :
Hi, We did have fitting instructions with the taps that were also Franke. Our plumber fitted the sink so no idea regarding that, but you might be able to download the information from their website www.franke.co.uk. Regarding sealing the unit to the worktop, our plumber used a waterproof clear sealant that you would use round your bath or shower tray. It needs x amount of hours to dry before you can get it wet, but it will state how long to leave it on the can. Sealants can be bought from B&Q. Hope that helps

Answered by Verified Purchaser Was this answer helpful? Yes - No


Answered By Iain :
Mine never came with foam tape either. I don't think that's included as part of the kit. You can buy the foam at B&Q for a couple of quid. There are dimensions for the cut out in the download section here http://www.franke.com/content/kitchensystems/uk/en/home/products/bymodelrange/sinks/ascona/asx_651/101_0277_124_detail.html

Answered by Verified Purchaser Was this answer helpful? Yes - No


Answered By Paul :
I didn't keep the instructions. After cutting the work surface I ran a bead of clear kitchen & bathroom sealant round the edge of the hole before dropping the sink onto it and securing it, then smoothing round the edge to remove excess sealant. I don't remember whether there was a sealing strip supplied, sorry (it was a while ago).

Answered by Verified Purchaser Was this answer helpful? Yes - No

0 - 1


Answered By Ali :
I put a line of clear silicon sealant on the worktop before installing it. Then removed any excess that was squeezed out after securing the sink to the worktop.

Answered by Verified Purchaser Was this answer helpful? Yes - No


Answered By Robert :
Just run a bead of clear silicone around the underside edge of the sink then push through the hole wiping away any excess silicone. The sink should then hold in place by the sharp grips around the edge of the underside of the sink.

Answered by Verified Purchaser Was this answer helpful? Yes - No


Answered By Justin :
Use a sanding sealer, apply two coats to edges of the sink cut-out then use a good quality translucent silicone, preferably anti fungal, apply a bead around the top edge of the perimeter of the cut-out. The sink is basically self- fitting, just place it over the cut-out & press down firmly, job done!

Answered by Verified Purchaser Was this answer helpful? Yes - No


Answered By Trayton :
You should have fitting instructions. I think they are on the Franke website. There wasn't any tap supplied. I sealed mine down with transparent mastic. Once dry I trimmed it with a sharp knife. Make sure the sink is located fully down in the hole in the work top. Once inserted it will not be easy to remove without damage.

Answered by Verified Purchaser Was this answer helpful? Yes - No


Answered By Paul :
On my sink there were grips which secured the sink in place when pressed down however remember to run a bead of good quality sealent between the sink and work surface before pressing fully into place.

Answered by Verified Purchaser Was this answer helpful? Yes - No
