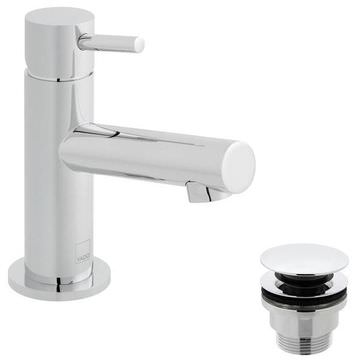

Vado Zoo Chrome Mini Mono Basin Mixer Tap

Vado Zoo ZOO-100M/SB-C/P Details

The Vado Zoo Mini Mono Basin Mixer Tap is the culmination of grace and practicality. The eco-friendly tap reduces the wastage of water. Equipped with a water flow aerator for smooth water flow, the chrome-finished tap comes with a 15-years guarantee against manufacturing defects. Simple to use and install, the mini mono basin mixer tap is competitively priced.

The contemporary tubular look of the tap is stunning, thanks to the extended spout and stunning chrome polish. All three factors - price, attractive look and utility - favour this modern and fashionable tap. This tap blends beautifully with chrome finish bathroom accessories.

Available in 2 variants: Without Waste, With Waste.
Deck-mounted installation.
Size [mm]: 50mm x 136mm x 138mm [Width x Depth x Height].
Size [cm]: 5cm x 13.6cm x 13.8cm [Width x Depth x Height].
The centre of the inlet to the centre of the outlet is 95mm (9.5cm).

Fitted with ceramic cartridge ZOO-100M/CAR.
Require a minimum of 0.5 bar water pressure [MP - Medium Pressure].
For complete size, details refer to technical drawing.
Download Installation Instruction PDF File from the Additional Info Section.

Info / Size (mm)

Tap
Pipe Centre: 95 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Range
: Zoo
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc
⤷ Base To Spout
: 66

⤷ Spout Reach
: 95
⤷ Overall Height
: 138
⤷ Width
: 50
⤷ Max. Deck Thickness
: 40
⤷ Inlet Connections
: 1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Handle Style
: Lever Handle
⤷ WRAS Approved
: Yes
⤷ Deck Mount Drill Hole Diameter
: 28
⤷ Waste Included
: Sold Separately
⤷ Compliance/Approvals/Standard
: WRAS
⤷ Barcode
: 5052120107140
⤷ Product Type
: Cloakroom Basin Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £135.00 2 Working Days Approx QS Supplies

3 Features Included In This Product Explained

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...
