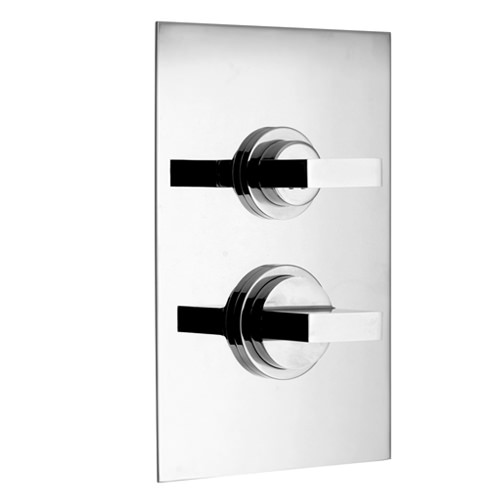

Vado Notion Concealed Thermostatic Shower Valve With Integrated Diverter

QS-V37065 MFC CODE: NOT-148C/2-C/P


RRP: £434.00 You Save £138.88 on RRP


3 Working Days Approx

Shipping: FREE


Vado's quality and design prowess is evident in all their products including this Notion Concealed Thermostatic Shower Valve With Integrated Diverter. The rectangle shaped back plate and chrome finish make this a most contemporary fixture that is backed by Vado's 12 year guarantee. Enjoy years of reliable function and delightful design for a fraction of the normal price thanks to QS Supplies discounted rate.

+  Read what's included.. & options available

Download the Installation / Maintenance Instructions Pdf File

Please Note all the measurements are in 'mm'
Colour Chrome
Shape Rectangular
Warranty/Guarantee 12 Years
Theme Modern
Installation Type Wall Mounted
Inlet Connections 3/4"
Minimum Operating Pressure (Bar) 0.2
Handle Style Knob
WRAS Approved Yes
Temperature Control Thermostatic
Backplate Width 130
Backplate Height 200
TMV2 Approved Yes
Number of Handles 2
Number of Outlet 2
Outlet Connection 1/2"
Diverter Included Yes
Plumbing Option Concealed
Concealed Body Included Yes



  • 2 outlet, 2 handle wall mounted thermostatic valve
  • Chrome finish
  • Fitted with thermostatic cartridge V-001C-PLA and diverter cartridge CEL-RETROFIT/DIV
  • 2 x 3/4” female inlets
  • 2 x 1/2” female outlets
  • Size: Width 130mm x Height 200mm
  • Includes fittings for 1/2” and 3/4” pipework
  • Flow rate at 3 bar water pressure: for outlet 1: 22 l/min, for outlet 2: 22 l/min
  • Required wall mount for standard installation: minimum 68mm - maximum 77mm
  • Optimum installation depth 73mm for standard installation
  • Min-max wall mount 77-103mm [extension option]
  • Optimum installation depth 90mm [extension option]
  • Manufacturer code of this product is NOT-148C/2-C/P
  • WRAS Approved and TMV2 Scheme
  • Minimum water pressure recommended for smooth working is 1.5 bar [MP-Medium Pressure]
  • Studfast Wall Bracket Optional [See Option]
  • 12 years of guarantee from the manufacturer

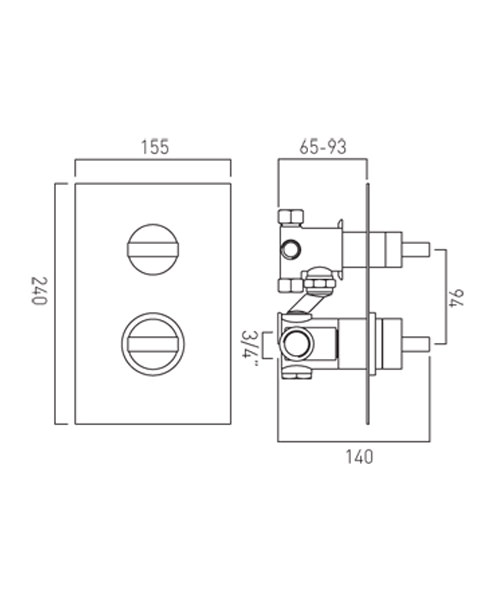

  • For complete size details please refer technical drawing
  • Download installation instruction PDF from technical tab.


Studfast Wall Bracket

Studfast Wall Bracket

Concealed wall bracket for mounting shower valves in stud walls. Please note : Image is for illustration purpose only

Wall Extension Kit

Wall Extension Kit

Vado concealed shower valve wall RECOMMENDED extension kit. Please note : Image is for illustration purpose only.
