Gemini Crossover Style Radiator 796 x 1760mm Chrome - GEW 01 1 176079

QS-V36018 MFC CODE: GEC021176079


RRP: £1376.40 You Save £137.64 on RRP

5.0 out of 5

1 out of 1 customers rated 100%

Review this Product


7 Working Days Approx

Shipping: £19.99


The Gemini Crossover Style Radiator has a contemporary look and feel, which is just right for modern lifestyles. The chrome-finish tube-on-tube design, constructed from high-quality steel is lightweight and suitable for use with effective pressure of up to 8 bar. It can be fixed easily with the valves also available right here at our online store. It comes with a guarantee of 5 years from MHS against any manufacturing defects and is also available with a classic white or novel anthracite finish. Get it today!

+  Read what's included..

Please Note all the measurements are in 'mm'
Colour Chrome
Weight in kg 25
Shape Crossover
Country of Origin EU
Warranty/Guarantee 5 Years
Material Steel
Theme Modern
Installation Type Wall Mountaid
Projection (Depth) 97
Width 796
Height 1760
Orientation Vertical
BTU Output 50° C 3276, 60° C 4125
Watts 50° C 960, 60° C 1216
Valves Included Sold Separately
Pressure Tested (bars) 8
Volume (ltrs) 11.6
  • Radiator
  • Width: 796
  • Height: 1760



  • Tube-on-tube radiator

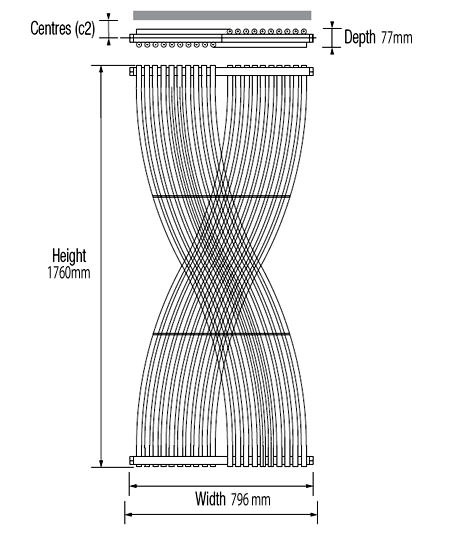

  • Dimension : 796 x 1760 x 77mm [Width x Height x Depth]
  • Contemporary 'Crossover' Style
  • Weight : 25 kg
  • Water Content :11.6ltrs
  • Heat output @ Delta T 50°C : Watts - 960, BTU - 3276
  • Heat output @ Delta T 60°C: Watts - 1216, BTU - 4125
  • Constructed from high quality of steel
  • Wall to face : 97mm
  • Distance from wall : 62mm
  • Tapping Centers : 796mm
  • 5 Years of guarantee from the manufacturer
  • Suitable to use with an effective pressure up to 8 bar
  • Image shown is for illustration purpose only
  • valves are available separately - See out valves section Click Here

Notes: Water Treatment : This radiator is to use on closed heating systems only they are certainly not suitable for installation on secondary DHWS circuits. On completion of the installation the entire system must be completely cleaned and flushed to clear out debris/flux residues etc. If the chemical cleanser is used, it needs to be thoroughly flushed through the system. Next, it has to be dosed with good eminence water treatment to prevent corrosion. System design, flushing and dosing need to be according to BS 5449: 1990, BS EN 12828: 2003 and BS 7593: 1992
IMPORTANT: Failure to see these requirements will render the guarantee on the product void. Corrosion inhibitor is required as per the manufacturer’s instructions and recommendations and will consider the particular metal within the system.

Sizes Available
Other Sizes / Finishes / Variations Available.
QS Code Finish Size / Difference MFC Code
QS-V36019 Anthracite - GEA111176079
QS-V71175 White - GEW011176079
