Bristan Prism Deck Mounted Chrome Basin Taps Pair

Bristan Prism PM 1/2 C Details

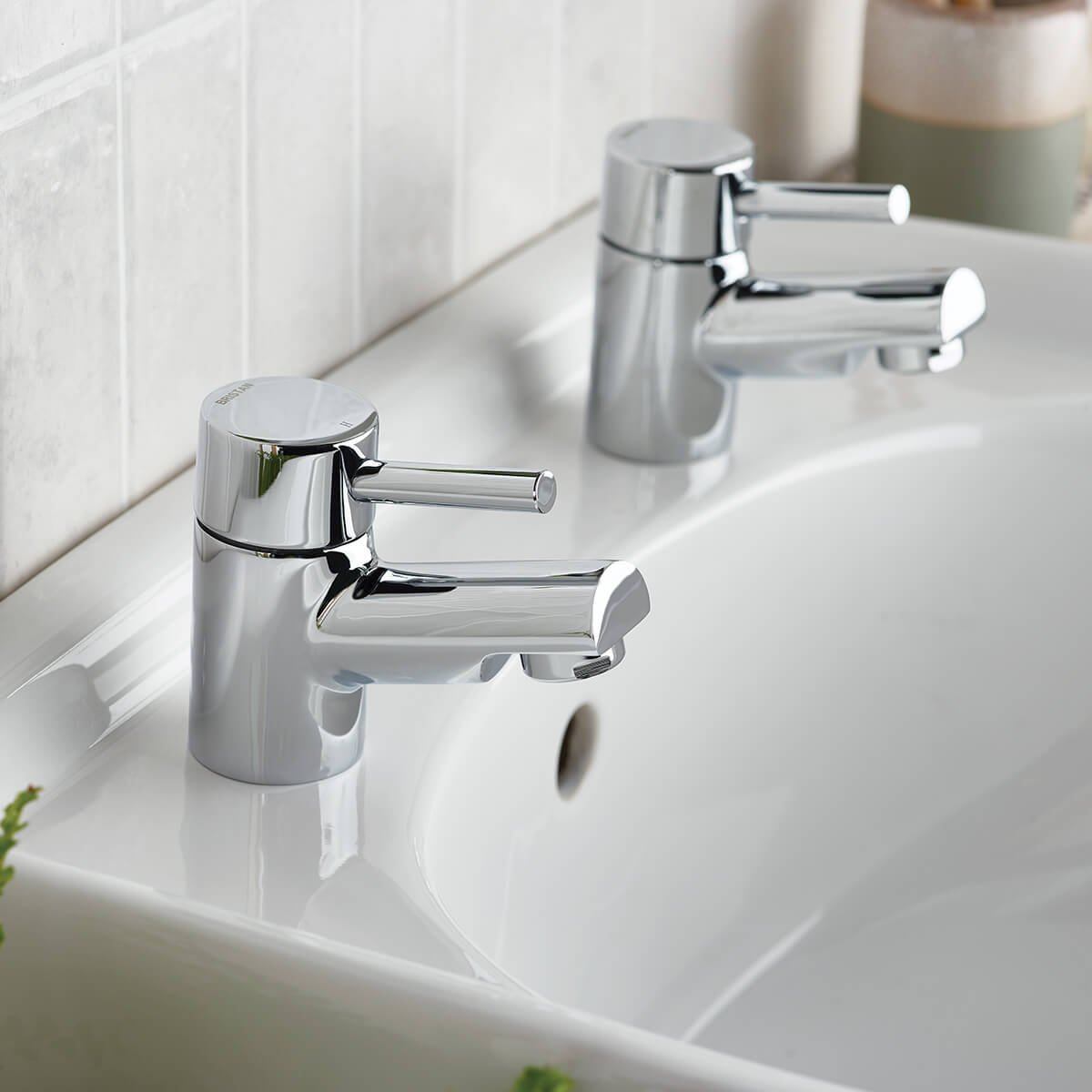

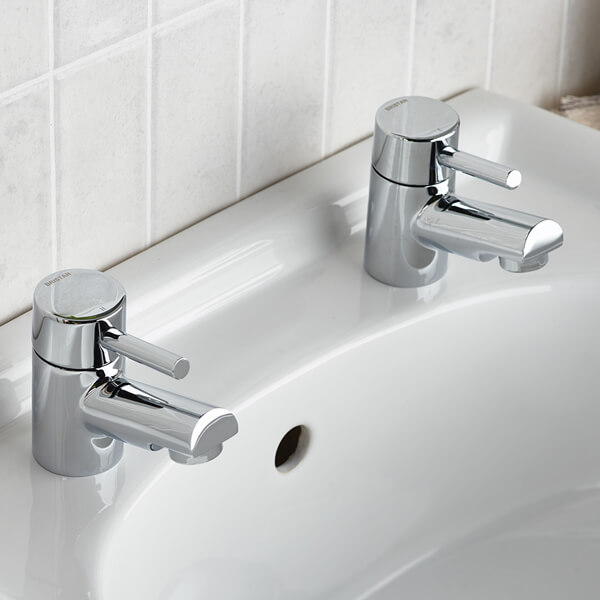

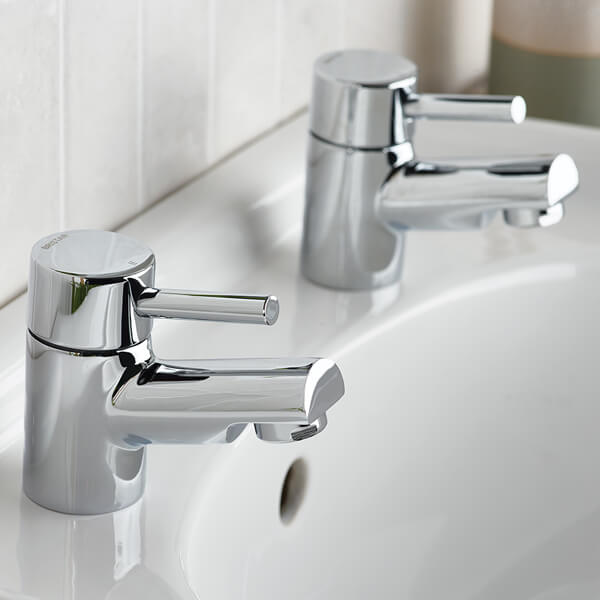

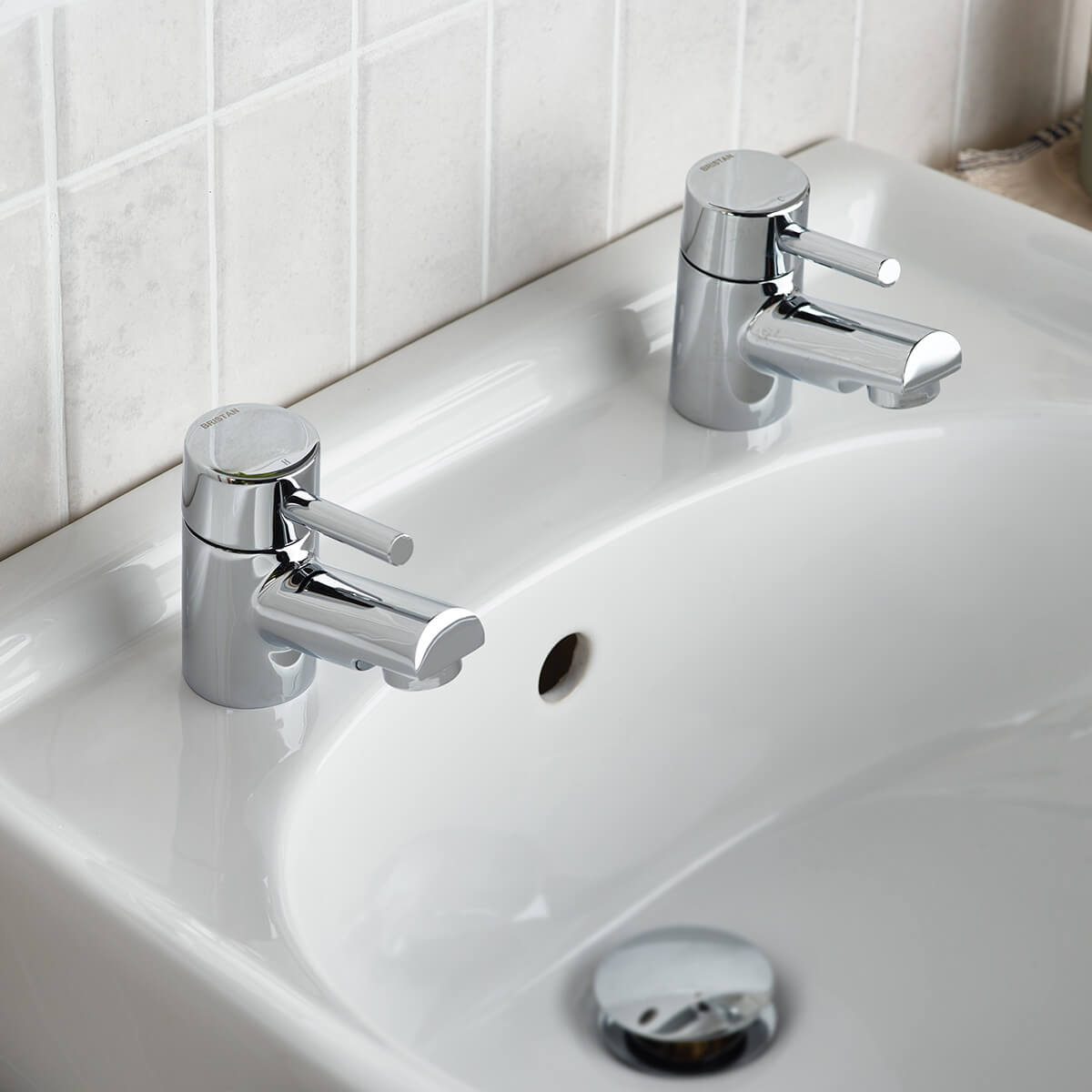

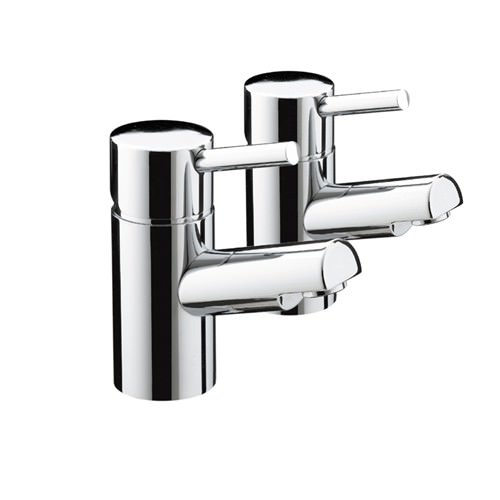

Get the handsome Bristan Prism Deck Mounted Basin Taps that come as a Pair and watch the transformation of your basin from simple to elegant. Introduced in three beautiful variations, the taps feature a solid cylindrical body and spouts with slim paddle handles for easy operation. The exquisite chrome finish sparkles and lights up any basin with pedestal or wall hung. This pair of taps can be deck-mounted and come with metal back nuts to extend the tap life. Suitable for all types of plumbing installations, the pair needs a minimum of 0.2 bar to a maximum of 8.0 bar operating water pressure for smooth working.

Comes in chrome finish: PM 1/2 C.
It comes in an attractive chrome finish.
Deck mounted installation.
Handle type: paddle.
Flow type: single flow.
Connection inlet: 1/2 inch BSP.
Number of tap holes required: 2.
Suitable for all types of plumbing installation.
Requires minimum 0.2 bar to maximum 8.0 bar operating water pressure.
Height of tap: 80mm - (8cm).
Base to spout: 40mm - (4cm).

Centre of the inlet to centre of outlet: 75mm - (7.5cm).
Maximum hot water temperature: 65°C.
Maximum dynamic pressure: 5 bar.
Maximum static pressure: 10 bar.
Flow rate: (l/min @ 3 bar) 35.
Connection outlet: M24 flow straightener.
Easy-to-use lever handles.
Product supplied with either 2 x 4 or 2 x 6 litre per minute flow regulators, which can be inserted into the threaded tail to reduce water consumption and increase water efficiency (Flow Regulator accurate +/- 10%).
Download the Installation Instruction PDF File From The Additional Info Section.
For complete size details, please refer to the technical drawing.

Info / Size (mm)

Taps
Pipe Center: 75 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Prism
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Valve/Cartridge Type
: Ceramic Disc

⤷ Handle Material
: Metal
⤷ Base To Spout
: 40
⤷ Spout Reach
: 75
⤷ Overall Height
: 80
⤷ Width
: 45
⤷ Inlet Connections
: G 1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.2 Bar
⤷ Handle Style
: Lever
⤷ Barcode
: 5014868962849
⤷ Product Type
: Basin Pillar Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £85.87 2 Working Days Approx QS Supplies

3 Features Included In This Product Explained

Precise Glide

It comes incorporated with ceramic cartridges for long life with precise control for smooth, leak-free use.

Secure Fix

The design features metal fixings that secure your tap, preventing any movement or rotation during use.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.
