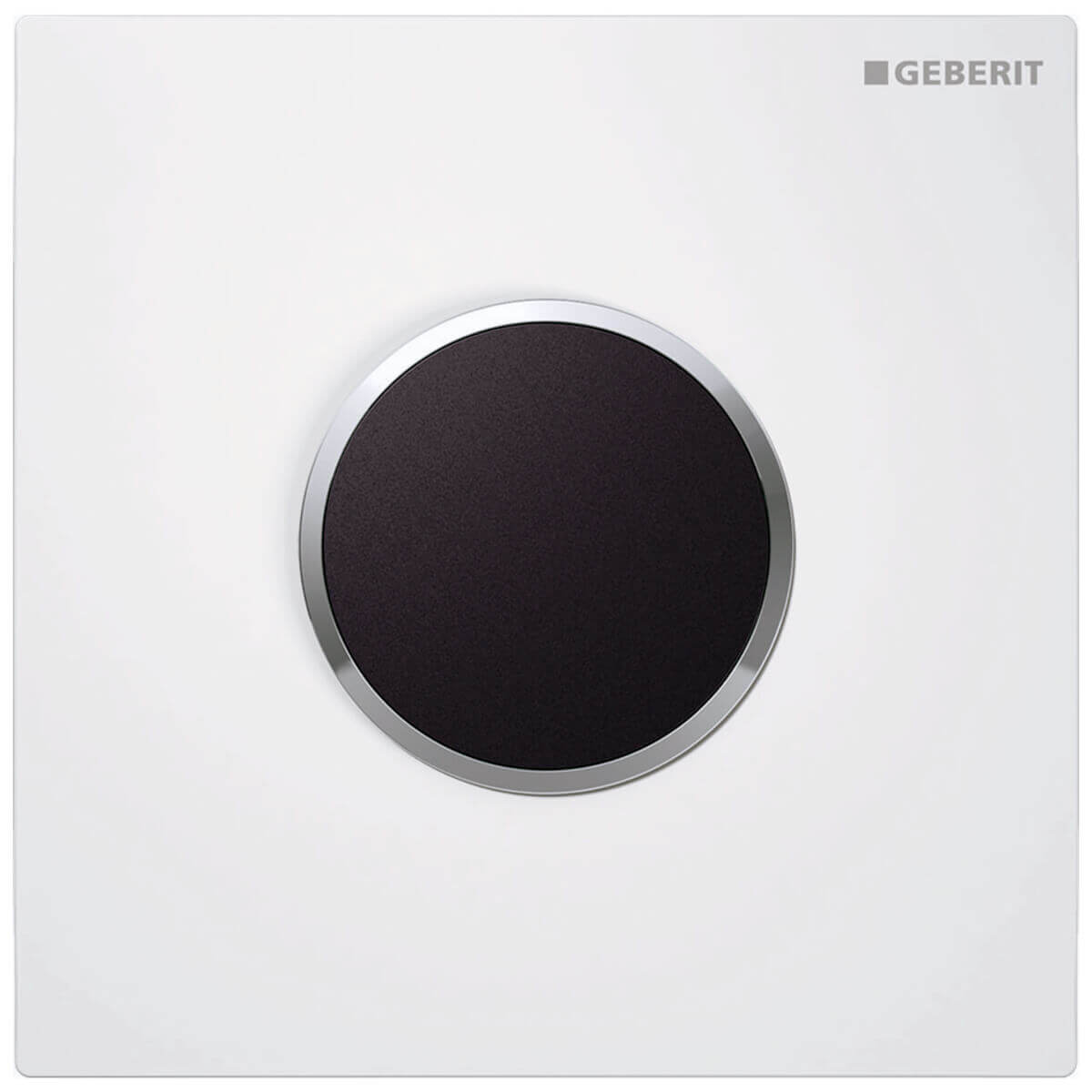

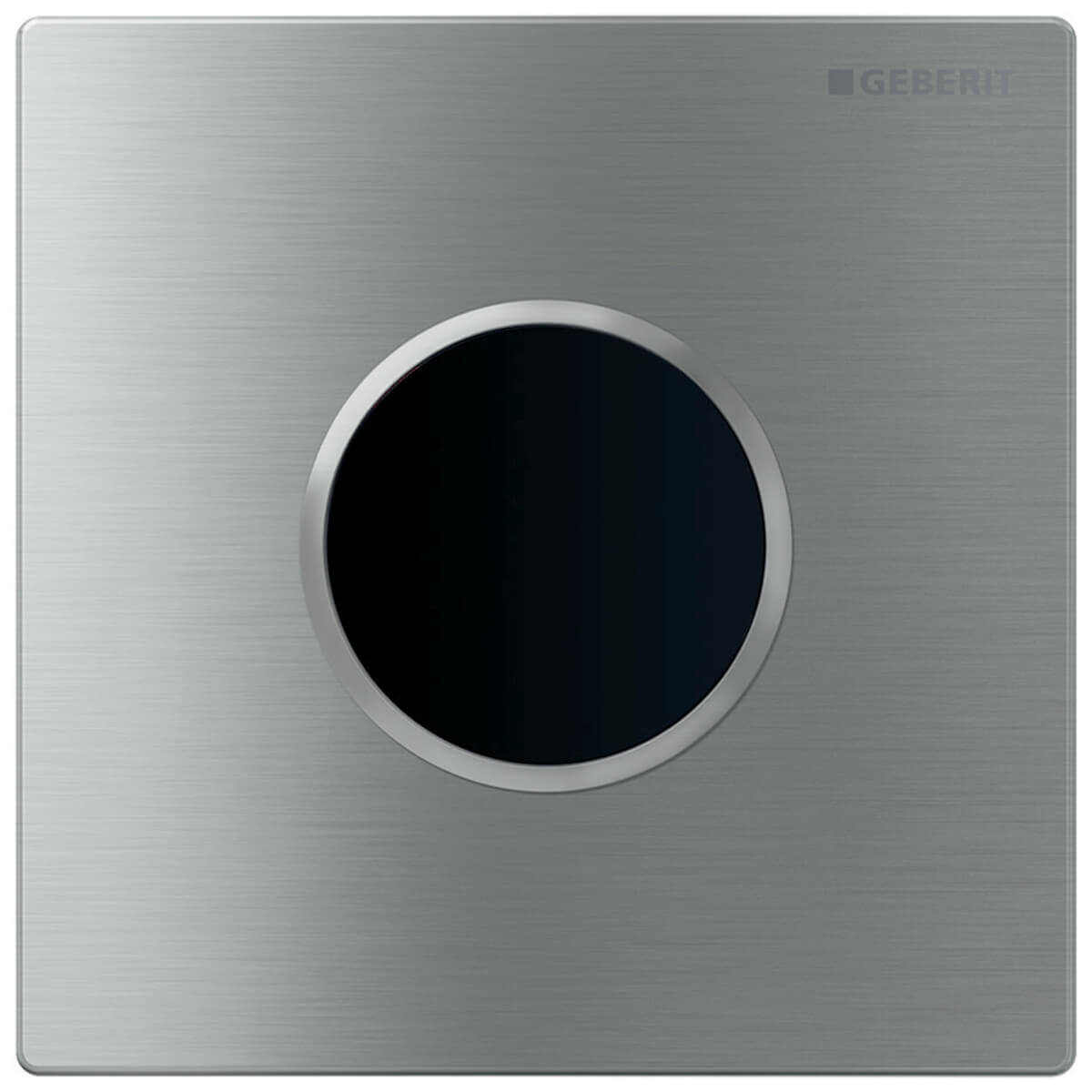

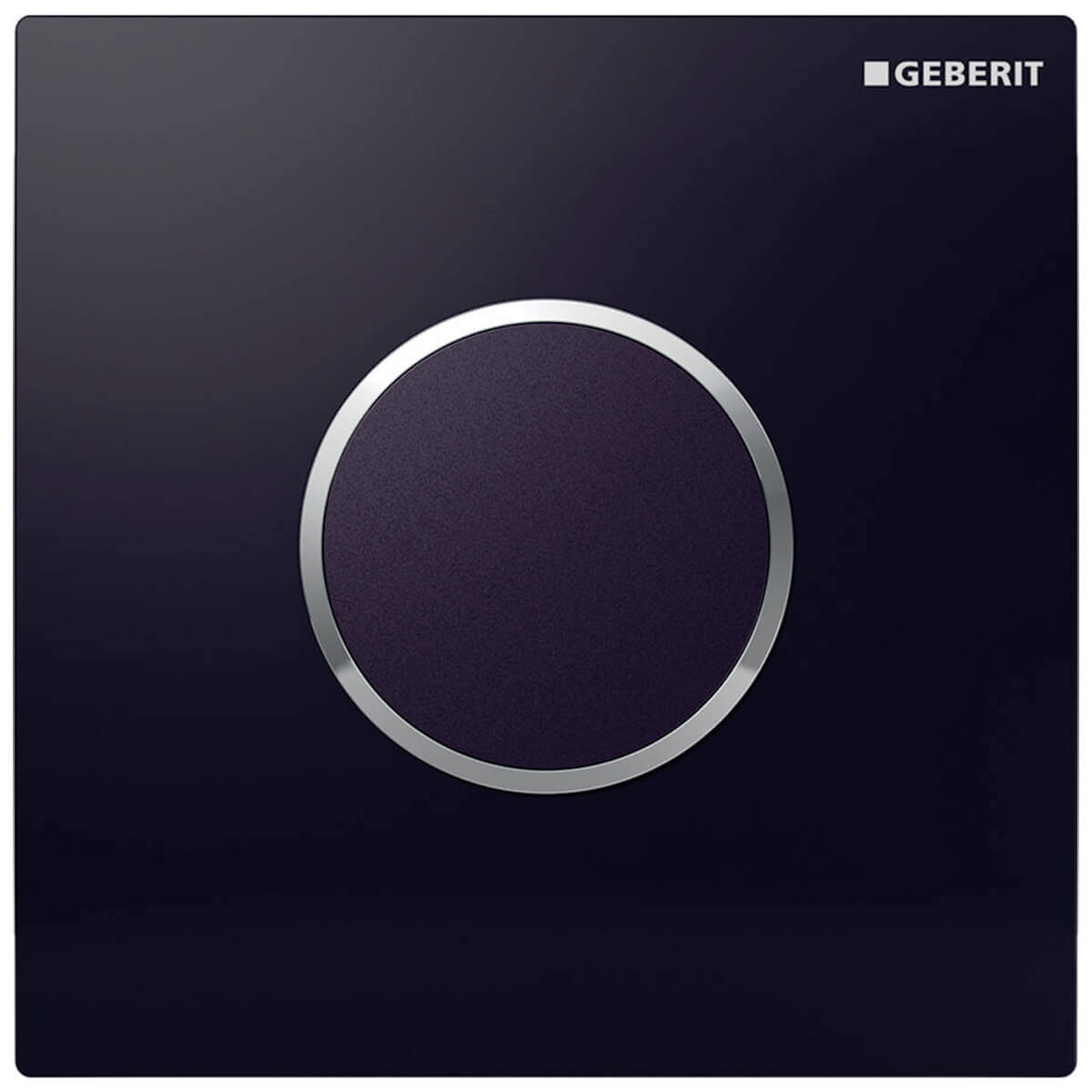

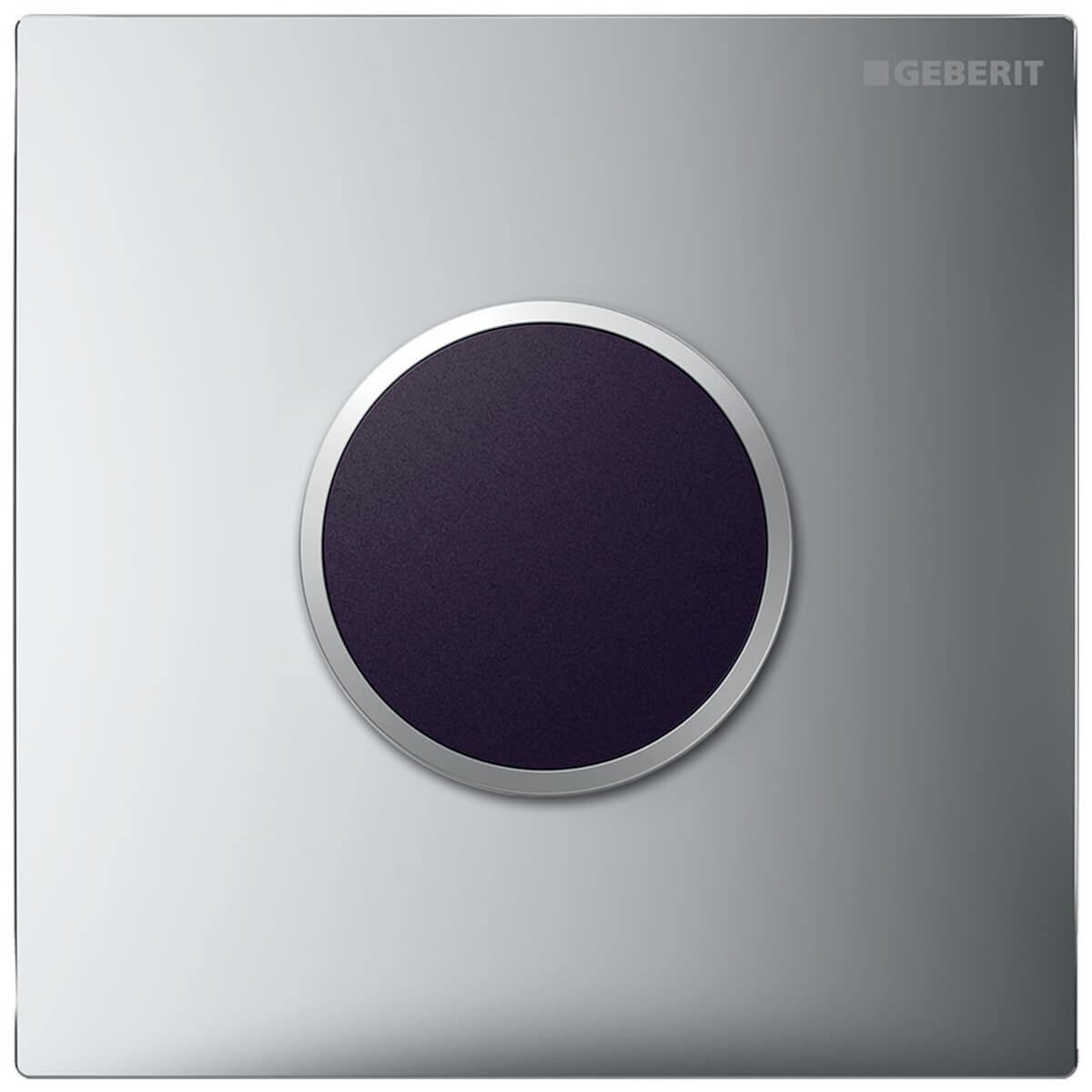

Geberit Sigma10 Hytouch Infra-Red Urinal Control Mains Powered

This new, brilliantly designed Sigma10 Urinal Flush Control from Geberit will improve the efficacy of the urinal. It can be used when assembling a urinal installation set and comes with an actuator and cover plate with an infrared window. Includes power supply unit, solenoid valve, fastening material, and Infrared control and is pre-mounted on the mounting frame.

The square unit with a round push-button gives it an edge over many other products in both quality and durability. Made from top-quality material, it sports many ravishing finishes to dress up the bath area. Specially designed for automatic flush actuation but controlled by the user, it has an in-built power-failure control system. A host of other features makes this fixture a must-have in every urinal set-up.

• Size [mm]: 130mm x 130mm [Width x Height].
• Size [cm]: 13cm x 13cm [Width x Height].
• Thickness: 10mm (1cm).
• Cover plate with securing bar.
• Self-adjusting IR sensor.
• Infrared user detection with background fade-out.
• Flush time can be set.
• Flush time can be set manually.
• Adjustable interval flush.
• Dynamic flushing time adjustment.
• Pre-flush can be set.
• Can be switched to operation with covered urinal.
• Power supply via mains connection.
• Ready for operation upon connection to mains.
• A power supply unit with an LED display.
• Power failure control unit.
• Valve-closing function when power fails.
• One-time flush after activation of the power supply.
• Functions can be set and queried with the Geberit Service Handy [Optional].
• Flush volume can be reduced to 0.5 l per flush with regulating screw of an installation set.
• Protection degree: IP45.
• Nominal voltage: 110-240 V AC.
• Mains frequency: 50-60 Hz.
• Operating voltage: 4.5 V DC.
• Power consumption: < 0.5 W.
• Flow pressure: 1-8 bar.
• Maximum test pressure, water: 16 bar.

• Maximum test pressure, air / inert gas: 3 bar.
• Relative humidity: < 100 %.
• Maximum operating temperature, water: 30 °C.
• Flow rate at 1 bar without flow limiter: 0.3 l/s.
• Flow rate at 1 bar with flow limiter: 0.18 l/s.
• Calculated flow rate: 0.22 l/s.
• Minimum flow pressure for calculated flow rate: 1 bar.
• Interval flush, adjustment range: 1-168 h.
• Interval flush, factory setting: 24 h.
• Interval flush time, adjustment range: 3-180 s.
• Interval flush time, factory setting: 5 s.
• Detection time, adjustment range: 3-15 s.
• Detection time, factory setting: 7 s.
• Flush time, adjustment range: 1-15 s.
• Flush time, factory setting: 7 s.
• Refer technical drawing for more details.
• Please refer Manual Installation PDF below for more instructions.
• Application purposes:.
• For automatic flush actuation of urinals.
• For Geberit frames for urinal with front actuation.
• For installation in installation sets for Geberit urinal flush controls (from the year of manufacture 2009).
• Scope of delivery:.
• Cover plate type 10 with IR window.
• Infrared control, pre-mounted on a mounting frame.
• Solenoid valve.
• Power supply unit.
• Fastening material.

Please Note: Can be operated with used water rainwater provided it is passed through a filter system first.
