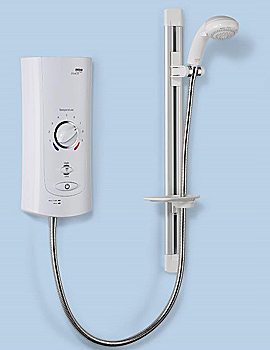

Mira Advance Thermostatic Electric Shower

Mira Advance 1.1785.001 Details

This shower set is a shining example of a design that heightens the appeal and functionality of the entire bathroom. Achieve a safe and precise showering experience by installing Mira Advance thermostatic shower 8.7KW. It is easy to operate and has thermostatic control features for keeping the temperature within the set limits.

Sure to impress, it features an irresistible design in white and chrome finish and offers a powerful showering experience with its unique shower handset. Made from premium materials, this unique and stunning product is available at QS Supplies at a discounted rate. Install this product inside your shower enclosure for maximising your convenience.

Available in 8.7kW and 9.8kW ratings [Optional].
Adjustable maximum temperature for on-site conditions.
Reduces risk of scalding and ensures user safety.
A simple setup means a fast and hassle-free installation.
Easy filter access.
Easily accessible controls free from clutter with high contrast on critical touch points.
Large easy-press power button.
Audible and tactile features for the visually impaired user.
Light touch controls.
Four different maximum temperature settings.
Mira Opti-flo Pro™ technology for consistent performance.
Mira Clear scale Pro™ technology that reduces limescale build-up.
Anti-glare, matte finish panel.
110mm (11cm) 3 spray modes hand shower with easy clean removable spray plate.
Patented friction grip hand shower holder.
Power options: 240V AC.
Supply voltage: 230v ± 10%.

Supply rating: 40 amp for 8.7kW and 45 amp for 9.8kW.
Terminal Block connections: Maximum 16mm² (1.6cm²).
Water entry points: Right (rising, falling & rear).
Cable entry points: Right (rising, falling & rear).
Inlet connections: 1/2" BSP male or 15mm (1.5cm) compression.
Outlet connections: 1/2" BSP Male.
Minimum maintained pressure: 0.5 bar (5-metre head), (1.0 bar BEAB Care).
Maximum maintained pressure: 5.0 bar (50-metre head).
Maximum static pressure: 10.0 bar (100-metre head).
Temperature stability: ± 1°C.
Phased shutdown: Yes.
Factory set to safe max temp: Adjustable to different max temp settings (41° C - 48° C).
Energy Efficiency: Class A.
RNIB, BEAB CARE, BEAB, KIWA UK and WRAS Approved.
Refer to the technical drawing for more size details.
Download the Installation Instruction and User Guide PDF File from the Additional Info Section.
Two years of warranty from the manufacturer against any manufacturing defects.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: White And Chrome
⤷ Country of Origin
: UK
⤷ Warranty/Guarantee
: 2 Years
⤷ Inlet Connections
: 1/2" BSP male or 15mm Compression
⤷ Spray Setting
: 3
⤷ Configuration
: Shower with Kit
⤷ Outlet Connection
: 1/2" BSP
⤷ Compliance/Approvals/Standard
: WRAS, BEAB, BEAB CARE, KIWI UK and RNIB Approved
⤷ Product Type
: Electric Shower
⤷ Temperature Control
: Thermostatic
⤷ Plumbing System Compatibility
: Main cold
⤷ KW Rating
: 8.7
⤷ Voltage
: 230v ± 10%

⤷ Soap Dish Included
: Yes
⤷ Touch Control
: Yes
⤷ Phase shutdown
: Yes
⤷ Adjustable timed shutdown
: Yes
⤷ Audible control option
: Yes
⤷ Adjustable maximum temperature stop
: Yes
⤷ Water Entry Points
: Right
⤷ Cable Entry Points
: Right
⤷ Maximum Static Pressure
: 10.0 bar
⤷ Unit Width
: 187
⤷ Unit Height
: 408
⤷ Unit Depth
: 105

Additional Info & Downloads

Download the Installation Instructions And User Guide Pdf File

Total: £354.22 2-3 Working Days Approx QS Supplies

6 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Mains-Operated

Mains-operated devices work on electricity by plugging into electrical wall sockets. These require higher electrical energy and can't be operated using batteries as small batteries can't power the device. Large, non-portable electrical appliances are typically mains operated.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

BSP Male Connector

British Standard Pipe (BSP) are a group of internationally accepted standards for threads for interconnecting hoses and fittings by mating an external (male) thread with an internal (female) thread. A BSP male connector also called Plug is a kind of threaded fitting used in plumbing and piping systems. It comes attached to a wire or hardware, has an exposed electrical terminal which fits into a receptacle (called female connector to complete the electrical connection.
