Mira Miniduo And Eco Shower Chromehead EV Thermostatic Mixer Shower Chrome.

Mira Miniduo 1.1663.241 Details

This Miniduo and Eco Showerhead EV Thermostatic Mixer is artistically designed to please your luxury-loving senses. It will surely attract you with its unbeatable performance and water efficiency features. It enables a safe showering for your family as this valve maintains stable temperature with thermostatically controlled technique. The three spray Eco showerhead saves up to 75% water compared to standard Miniduo; at 0.5 bar pressure. It is WRAS and TMV2 approved.

Separate temperature and flow controls.
The manufacturing code of this product is 1.1663.241.
Three spray Eco showerhead saves up to 75% water compared to standard Miniduo at 0.5 bar pressure.
Thermostatic temperature stability keeps showering safe.
Single spray showerhead with rub-clean rubber nozzles for easy cleaning.
EV models come with 110mm (11cm) pipe centres.
Extended elbows pack available as an option [See Option Below].

Suitable for all plumbing installation.
Suitable for all operating water pressure.
The minimum pressure requirement is 0.5 bar.
Download the Installation Instruction And User Guide PDF File from the Additional Info Section.
Plumbing system compatibility:.
Mains and gravity-fed systems.

Technical Specifications

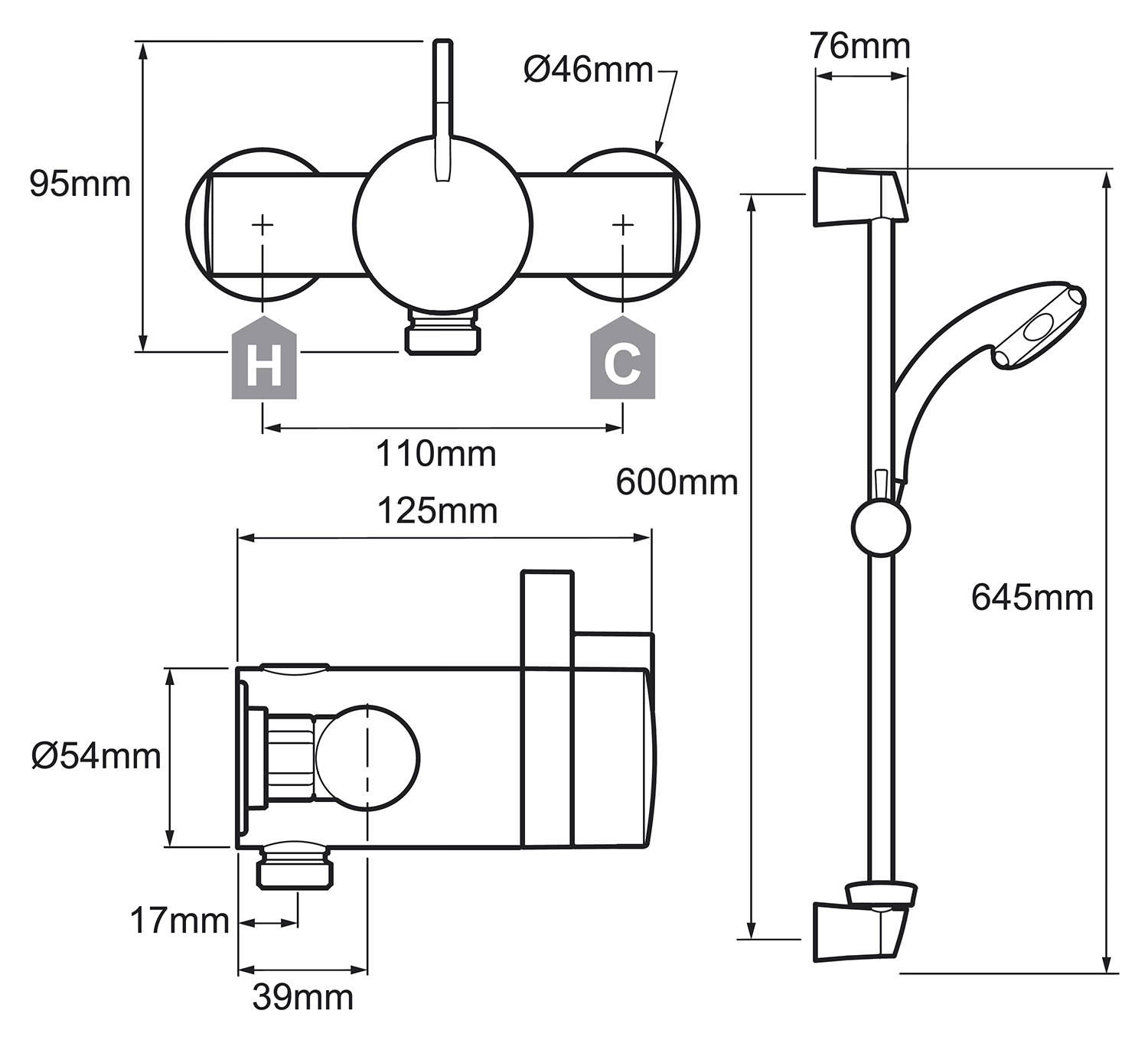

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Country of Origin
: UK
⤷ Warranty/Guarantee
: 3 Years
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Exposed
⤷ Inlet Centres
: 110
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Water Saving
: Yes
⤷ Hose Included
: Yes
⤷ Spray Setting
: 3

⤷ Configuration
: Valve, Slide Rail, Handset Kit
⤷ Temperature Control
: Thermostatic
⤷ Compliance/Approvals/Standard
: WRAS, TMV2
⤷ Product Type
: Shower Set
⤷ Plumbing System Compatibility
: Suitable For All Systems And Pressures
⤷ Separate temperature and power controls
: Yes
⤷ Handset Included
: Yes
⤷ Valve Size
: D 125 x H 95
⤷ Rail Length
: 645

Additional Info & Downloads

Download the Installation And User Guide Pdf File

Total: £309.23 2-3 Working Days Approx QS Supplies

Other Sizes / Finishes

Other Sizes / Finishes / Variations Available.

QS Code	Finish	Size / Difference	MFC Code
QS-V52537	-	Concealed	1.1663.242

Back to QS-V52530 / MFC Code: 1.1663.241

6 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Rub Clean

Any limescale deposits can simply be wiped clean with a clean cloth - no need to scrub or use harsh cleaners.

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

Bar Pressure

Bar is a unit of pressure, which is accepted for use with SI by The International Bureau of Weights and Measures. The bar is used as it is almost equal in value as the standard atmosphere which is 1.01325 bar.
