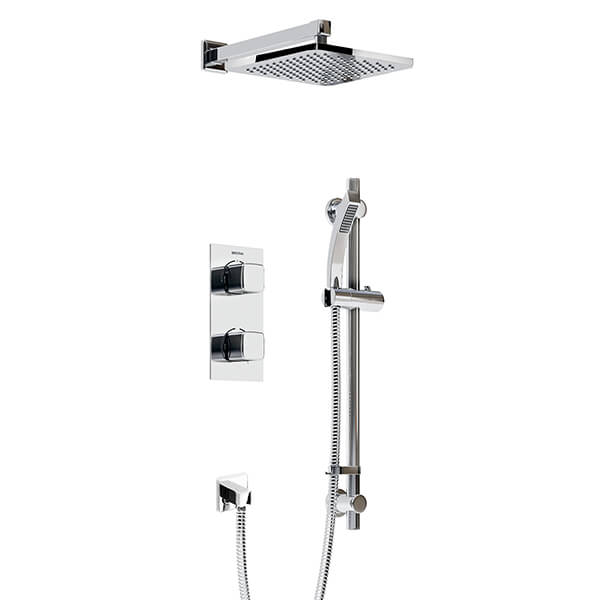

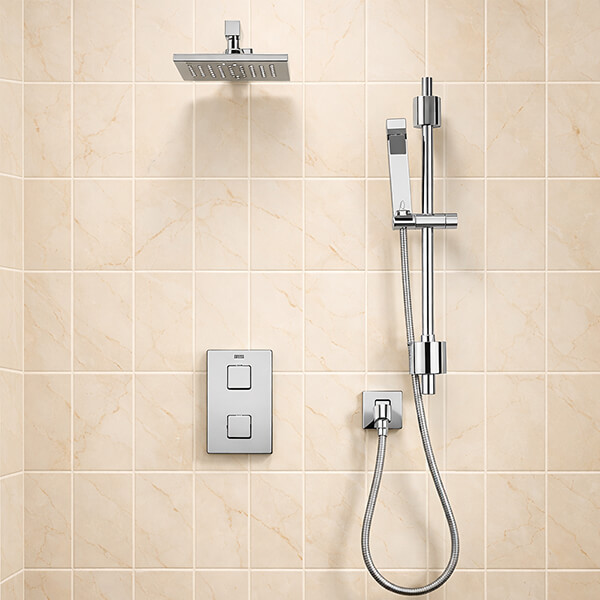

Bristan Cobalt Recessed Dual Control Chrome Shower Pack

Bristan COBALT SHWR PK Details

The Bristan Cobalt Recessed Dual Control Shower Pack is a fine example of contemporary style brassware and fittings, finished in fabulous chrome to give this ensemble a refined, sophisticated look. Featuring a concealed shower valve with dual controls, its dual handles offer an intuitive system to control water flow and temperature for a comfortable shower each time. Featuring an integral diverter, users can enhance their experience by switching between the rose and handset.

The fixed shower head comes with rub-clean nozzles, which make it easy to clean and maintain. The cascade riser rail with an adjustable bracket allows the handset to be placed according to the height of the user. The flexible shower hose with a hose retainer offers maximum convenience while showering.

Manufacturing code of this product: COBALT SHWR PK.
It comes in a fabulous chrome finish.
Contemporary and stylish design.
Suitable for all plumbing conditions.
Suitable for low and high water pressure systems.
Requires a minimum of 0.3 bar to a maximum of 5.0 bar of water pressure.
For complete size details, please refer to the technical drawing.
Pack includes:.
Cobalt Recessed Thermostatic Dual Control Shower Valve with Integral Diverter.
Stainless Steel Slim-line 200mm Square Fixed Head.
Shower Wall Arm Square.
Cascade Riser Rail with Adjustable Position Bracket.
Arc Handset.
1500mm cone-to-cone Standard Bore Shower Hose.

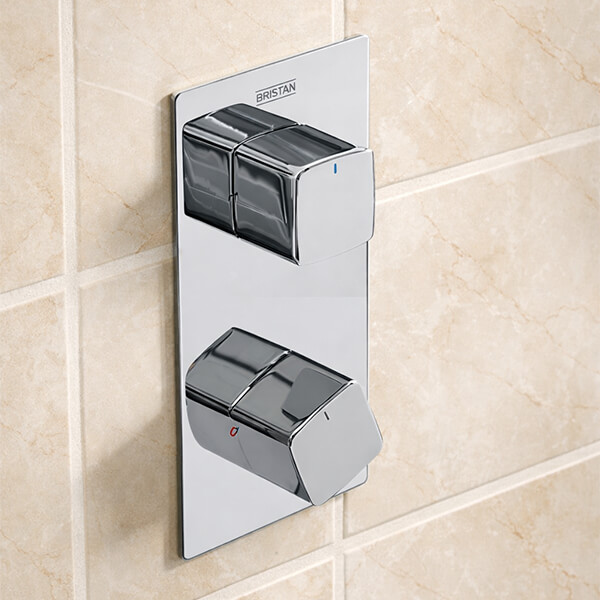

Features Of a Valve:.
Supplied with metal handle.
Inlet connection 15mm compression connections.
Suitable for cavities between 58mm - 75mm (5.8cm - 7.5cm).
The minimum cold water supply temperature is 5°c.
The maximum hot water supply temperature is 80°c.
The flow rate at 0.2 Bar (open outlet without flow regulators) is nine l/min.
Requires rear access to service the filters.

The cartridge can be accessed from the front.
Inlet centre: 150mm - (15cm).
Size of base plate in [mm]: 100mm x 200mm [Width x Height].
Size of base plate in [cm]: 10cm x 20cm [Width x Height].

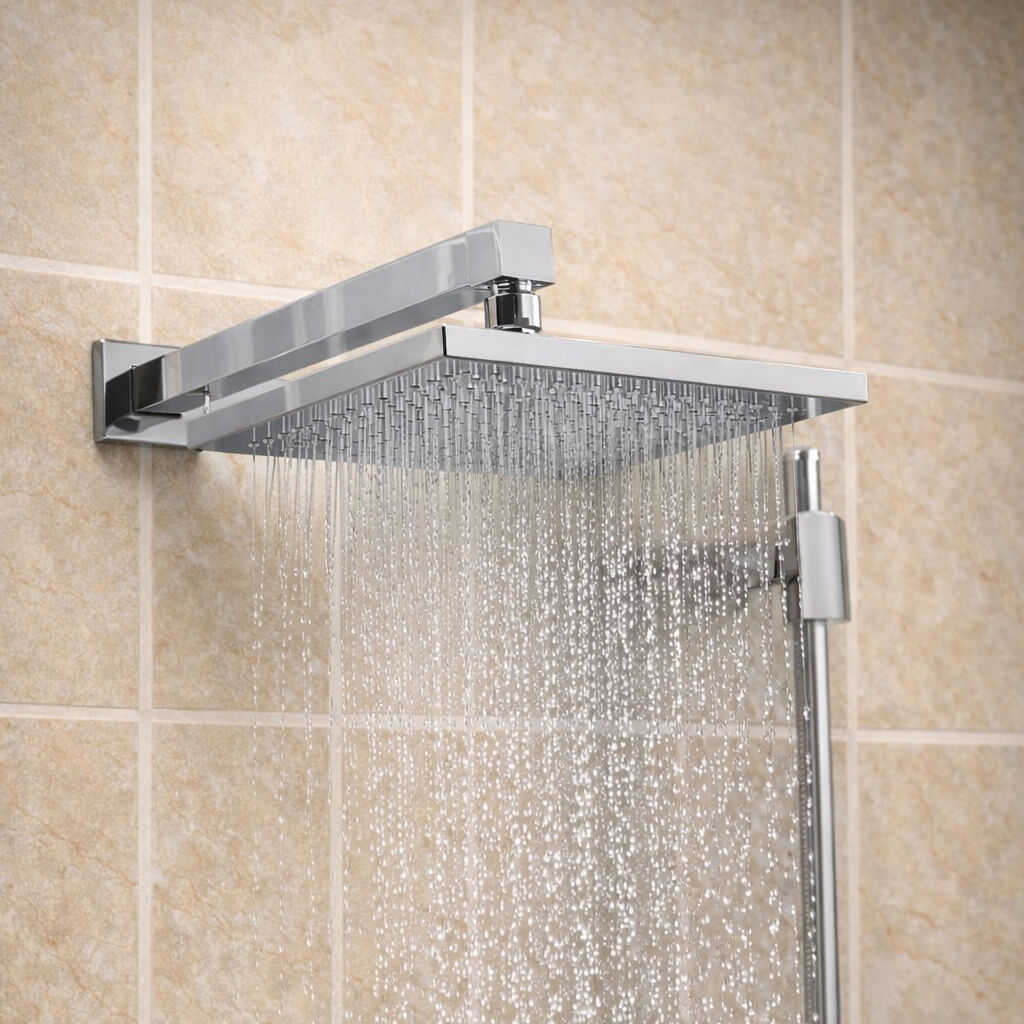

Features Of Fixed Head:.
It comes complete with a swivel joint.
Rub clean nozzles to make this item easy to clean and maintain.
Features of fixed shower arm:.
Designed to be used in conjunction with Bristan shower heads and roses and shower.
Features of riser rail:.
Height: 650mm - (65cm).
Rail diameter: Ø22mm - (2.2cm).
Riser Rail includes: - Riser Rail, Slider Bracket and Hose Retainer.

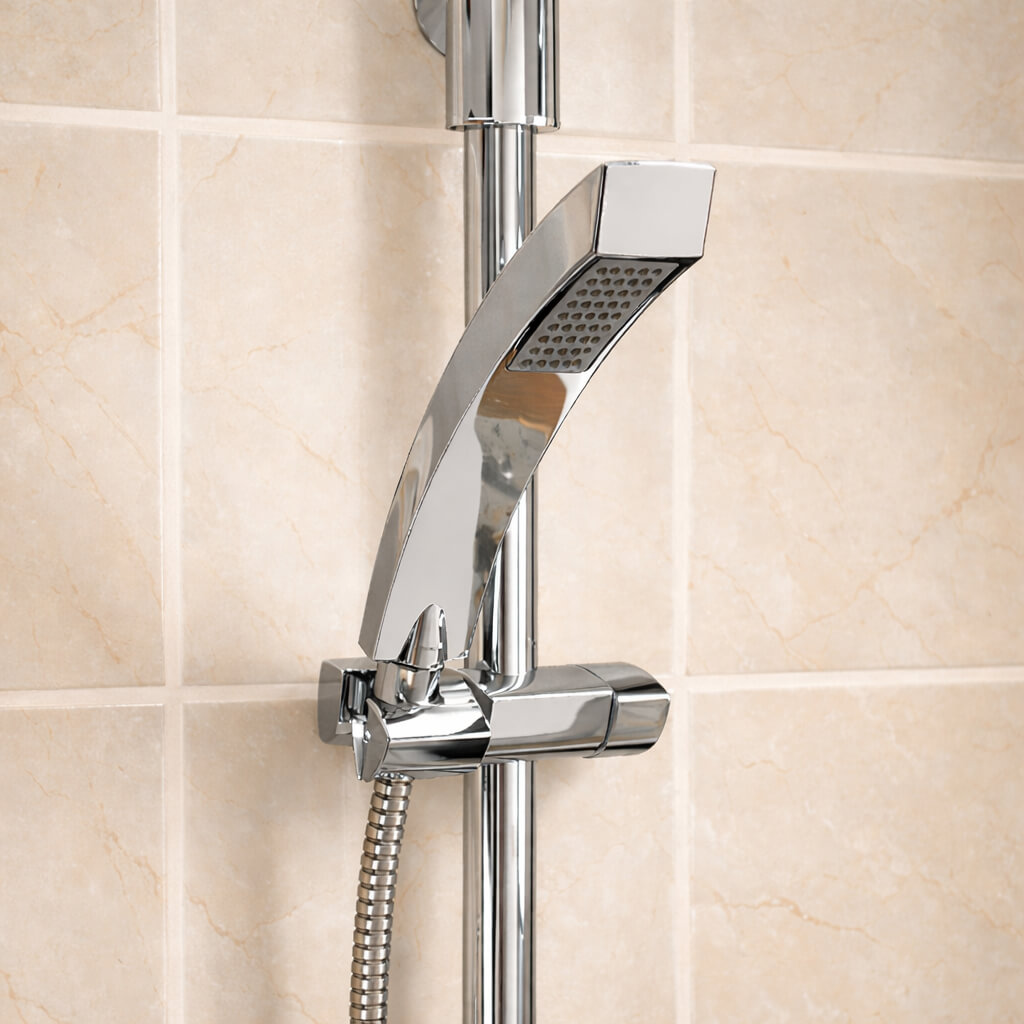

Features of ARC handset:.
Constructed using top-quality ABS material.
Rub clean handset.
Features of hose:.
Length: 1500mm - (150cm).
Standard bore: Ø8mm - (0.8cm).
Supplied with rubber sealing washers.
To be used with any Bristan electric shower units, manual showers, or bath shower mixer taps.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Inlet Centres
: 150
⤷ Minimum Operating Pressure (Bar)
: 0.3
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500

⤷ Backplate Width
: 100
⤷ Backplate Height
: 200
⤷ Hose Type
: Cone To Cone
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200
⤷ Rail Length
: 650

Total: £272.64 2 Working Days Approx QS Supplies

7 Features Included In This Product Explained

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

2 Outlets 1 On

There are two outlet connections, of which only one can be used at a given time.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Reviews & Ratings

By: Melvyn From : SEAFORD Overall Rating: Date: May 8, 2018 After much research.....

I found this item - and it looked to be of excellent value and quality - so I bought it. The quality is superb; the fitting was easy, the overall customer service was excellent - what more can one say - I would definitely recommend this product to anyone contemplating buying it.

Helpful?

1 of 1 People have found this Review useful

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

LINU Asked :
Hi, Regarding the product code: COBALT SHWR PK, do I need to purchase any other items with this, like the mixer valve, separately to make it work? After 3 shower sets with spout, preferably from Grohe or similar manufacturers (including mixer valve, plate, shower head, spout and hand shower). If you sell any of those, could you please let me know as soon as possible?

Answered By QS Team

This Pack includes: 1) Cobalt Recessed Thermostatic Dual Control Shower Valve with Integral Diverter, 2) Stainless Steel Slim-line 200mm Square Fixed Head, 3) Shower Wall Arm Square, 4) Cascade Riser Rail with Adjustable Position Bracket, 5) Arc Handset, 6) 1500mm cone to cone Standard Bore Shower Hose. Also, look at our website for similar packs to suit your requirements.

Was this answer helpful?

saj Asked :
What is the warranty on the product & how does it work if I buy & anything goes wrong

Answered By QS Team

This product carries five years of guarantee against any manufacturing defects. If anything goes wrong after your purchase and this product is under the guarantee period, you should contact the manufacturer.

Was this answer helpful?
