Duravit Wall Hung 360 x 355mm Urinal - 0851350000

Duravit Wall Hung 360 x 355mm Urinal

Duravit Wall Hung 360 x 355mm Urinal

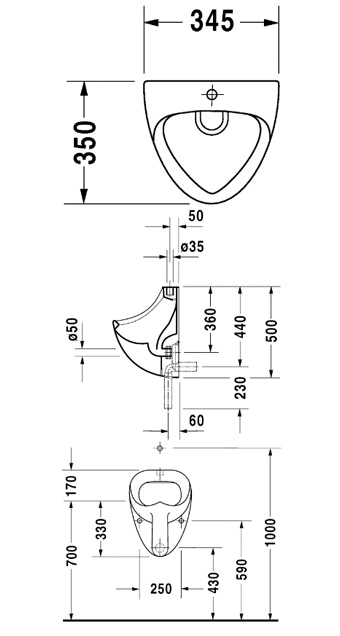

Technical drawing QS-V45513 / 0851350000

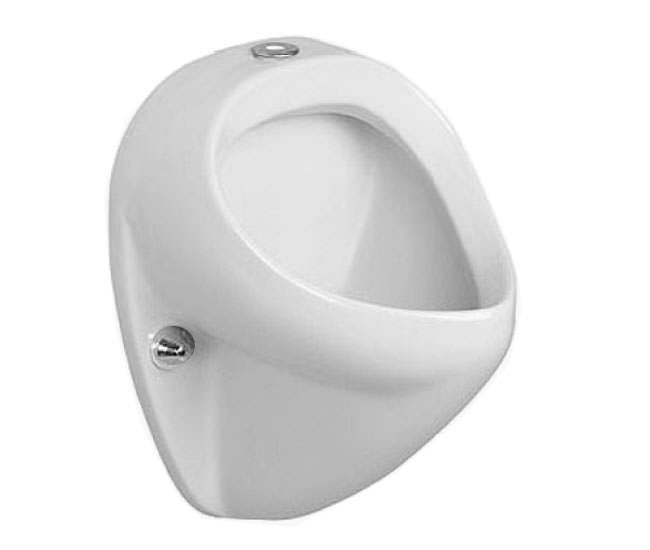

Additional image of Duravit 0851350000

QS-V45513 small Image 1

QS-V45513 small Image 2

QS-V45513 small Image 3

£245.50

STOCK AVAILABILITY

7 Working Days Approx

No Rating

Shipping: £20.00

Select Variations

Concealed Inlet-Without Fly Image £245.50
Visible Inlet-Without Fly Image £245.50

You've Selected: OP-179641 - Concealed Inlet-Without Fly Image

QTY

Key Features

✔Urinal with symphonic action
✔It comes in a White Alpin finish
✔Compatible with vertical or horizontal outlet
✔Five years of warranty against any manufacturing defects

SKU Code: QS-V45513

MFC Code: 0851350000

+ Review this Product

Duravit Urinal 0851350000 Details

Duravit Wall Hung 360 x 355mm Urinal is remarkably designed to fit places like restaurants, lodge, hotels and any other hospitality service places or you can install in your home as well. It is available in four trendy variations; Concealed Inlet-Without Fly Image and Visible Inlet-Without Fly Image. It Comes in a polished white Alpin finish. This Urinal has got siphonic action which avoids spilling any droplets.

Available in 2 variations.
Size [mm]: 360mm x 355mm x 510mm [Width x Depth x Height].
Size [cm]: 36cm x 35.5cm x 51cm [Width x Depth x Height].
Weight: 12kg.
Vertical outlet - 0051110000 [Optional].

Horizontal outlet (concealed) - 0051120000 [Optional].
Water inlet mechanism - 6958000000 [Optional].
Chrome finish urinal fixing - 0050301000 [Optional].
Download the Installation Instruction PDF File From The Additional Info Section.
Refer to the technical diagram for complete technical dimensions.

Info / Size (mm)

Toilet
Width: 360 mm
Projection: 355 mm
Height: 510 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: White
⤷ Weight in kg
: 12kg
⤷ Country of Origin
: Germany
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Projection (Depth)
: 355
⤷ Width
: 360

⤷ Outlet
: Vertical, Horizontal
⤷ Configuration
: Bowl Only
⤷ Height
: 510
⤷ Fixing Holes Centre
: 250
⤷ Barcode
: 4021534104824
⤷ Distance from floor to centre of fixing hole
: 595
⤷ Product Type
: Urinal
⤷ Distance finished floor level to centre of drain hole
: 435

Additional Info & Downloads

Download the Installation Instruction Pdf File

Customise Your Product

Urinal-Siphon

Urinal siphon. Please Note: The image shown is for illustration purposes only.

None
OP-4434 - Vertical Outlet + £32.44
OP-15217 - Concealed Horizontal Outlet + £33.84

Fixing For Urinal

Excellent quality chrome-plated fixing for the urinal. Choose from the option given below.

None
OP-4435 - Urinal Fixing 10mm x 140mm + £8.88

Water-Inlet-Mechanism

Half Inch water inlet mechanism for urinals with back supply. Please Note: The image shown is for illustration purpose only.

None
OP-15218 - Mechanism With Back Supply + £39.52
