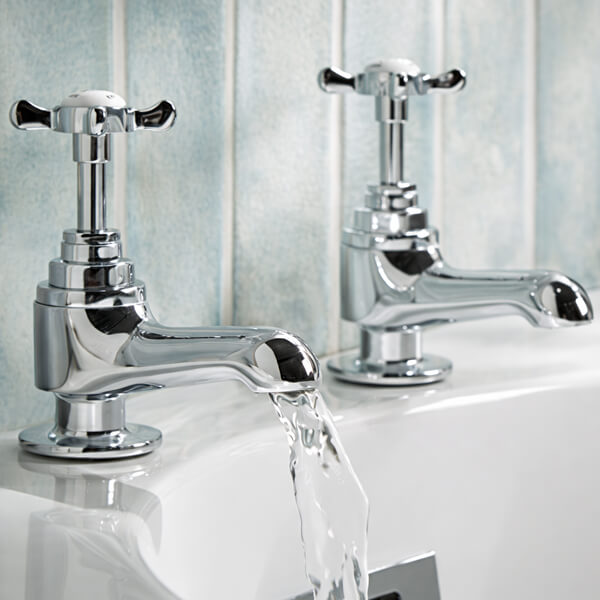

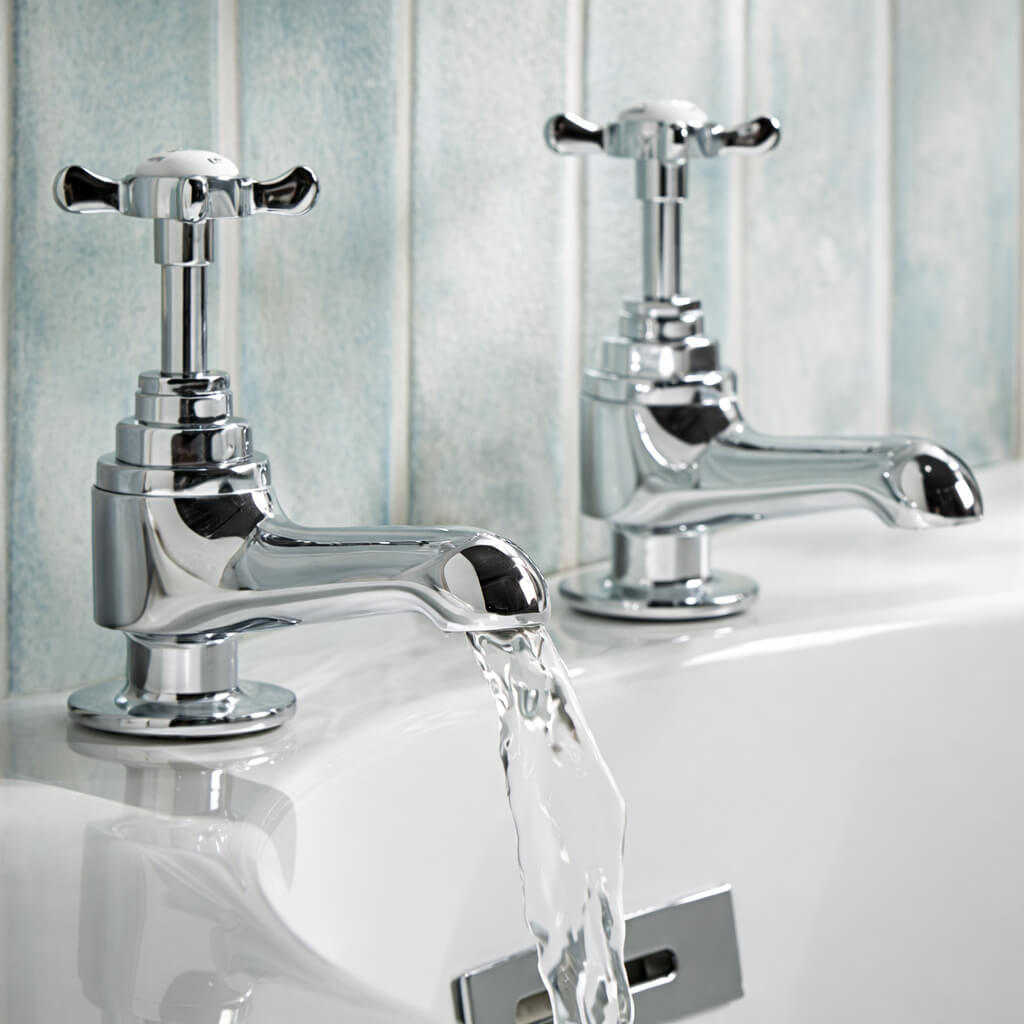

Bristan 1901 Pair Of Traditional Bath Taps

Bristan 1901 N 3/4 C CD Details

The symmetrical design with curved spout and crosshead handles give this pair a stunning presence with a classic bathtub. Taps are one of the most important elements of your bathroom and to give you the best, Bristan has introduced these stylish pair from its 1901 series. With its uninterrupted performance, it is designed to make your bathing more joyful and hassle-free. Finished in chrome, these classic taps are made from brass, to ensure immense robustness. Backed with a 10-year guarantee from the manufacturer, the pair is available, at a highly reduced price, from QS Supplies.

The manufacturing code of this product is N 3/4 C CD.
Chrome plated to BS EN 248.
Size in [mm]: 50mm x 135mm x 120mm [Width x Height x Depth].
Size in [cm]: 5cm x 13.5cm x 12cm [Width x Height x Depth].
Base to spout: 30mm - (3cm).
Centre of the inlet to the centre of the outlet: 85mm - (8.5cm).
Inlet connection: 3/4 inch BSP.

Metal handles.
Metal back nuts for added durability.
Maximum hot water temperature: 65°C.
Suitable for low and high water pressure.
Required minimum 0.2 bar to maximum 8.0 bar water pressure.
Refer to the technical diagram for complete technical dimensions.

Info / Size (mm)

Tap
Pipe Centre: 85 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: 1901
⤷ Water Activation
: By Rotating
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Traditional
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic disc

⤷ Handle Material
: Metal
⤷ Base To Spout
: 30
⤷ Spout Reach
: 85
⤷ Overall Height
: 135
⤷ Width
: 50
⤷ Inlet Connections
: G 1/2 inch
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Flow Rates (l/min)
: 8 Litre/Min @ 0.2 bar
⤷ Handle Style
: Crosshead
⤷ Barcode
: 5014868026152
⤷ Product Type
: Bath Taps

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £81.58 2 Working Days Approx QS Supplies

3 Features Included In This Product Explained

Precise Glide

It comes incorporated with ceramic cartridges for long life with precise control for smooth, leak-free use.

Secure Fix

The design features metal fixings that secure your tap, preventing any movement or rotation during use.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.
