Bristan Artisan Chrome Thermostatic Bar Shower Valve With Handset

Bristan Artisan AR2 SHXMTFF C Details

Rekindle the romance of a refreshing shower with this fabulous Thermostatic Bar Shower Valve with a Handset from Bristan Artisan. It is built for exceptional ease; it includes an attractive multi-function handset with a clean rub nozzle, 1500mm hose, and adjustable riser rail and hose retainer. A great-looking ensemble with round and tubular elements moulded from solid brass, ideal for all kinds of settings.

You can install it in a jiffy with unique fast-fit connections within your wetroom or shower rooms. The eco-smart shower valve has built-in safety features such as a pre-set accurately controlled temperature and an automatic shut-down system in case of water failure. Requiring an operating pressure between 0.1 bar and 5.0 bar, it is suitable for all plumbing systems, is versatile and user-friendly and guaranteed against manufacturing flaws for 5 years.

Manufacturing code of this product - AR2 SHXMTFF C.
It comes in a chrome finish.
Contemporary and stylish design.
Size in [mm]: 110mm x 650mm [Width x Depth x Height].
Size in [cm]: 11cm x 65cm [Width x Depth x Height].
Thermostatic cartridge with preset temperature stop at 38°C can be over-ridden to a maximum of 46°C.
Supplied with a wall mount ten fixing kit for easier retro installation.
Includes 1.5m hose, multi-function rub-clean anti-limescale handset and hose retainer.
Adjustable fixing brackets on the riser rail enable existing screw holes to be used.

Inlet connection: 15mm compression.
Outlet connection: G 1/2 inch BSP.
Maximum Hot Water Supply Temperature: 60ºC.
Maximum Static Pressure: 10 bar.
Suitable for all types of plumbing installation.
Suitable for low water pressure system.
Required minimum 0.2 bar or above 5.0 bar water pressure system.
Download the Installation Instruction PDF File From The Additional Info Section.

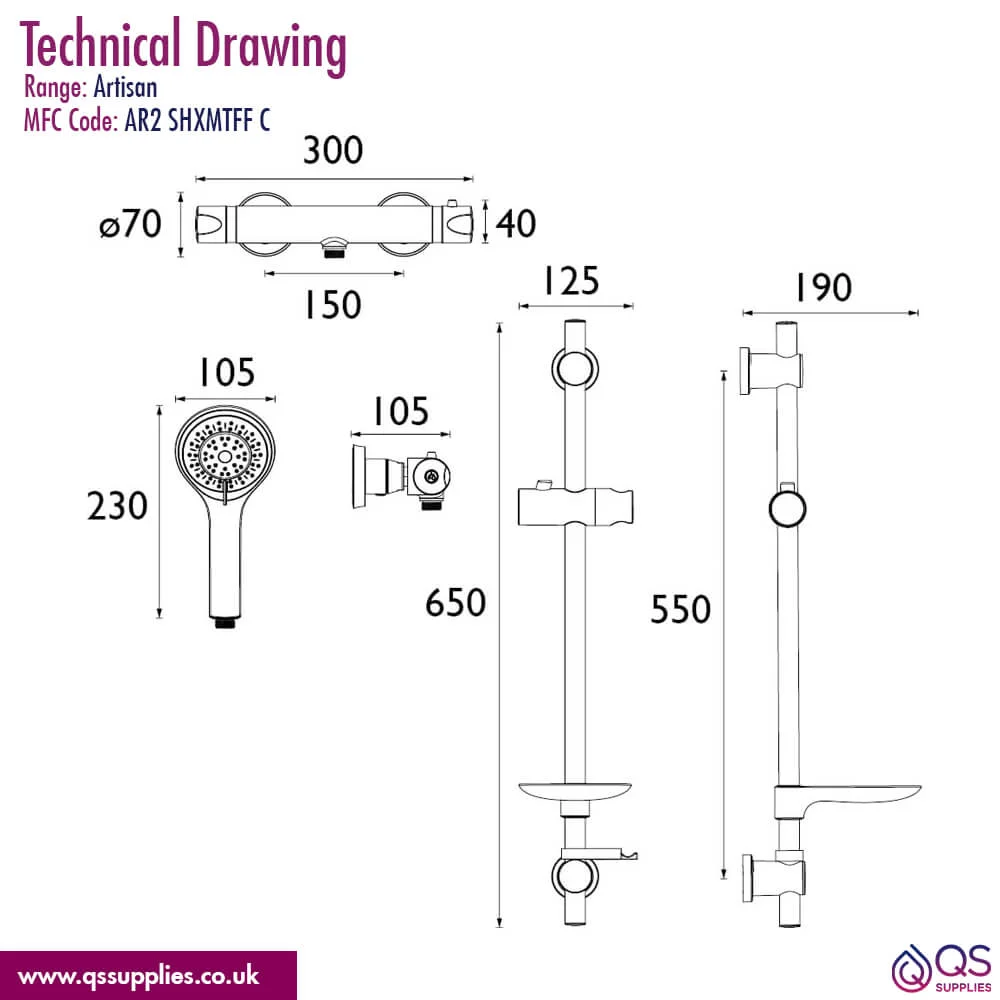

Refer to the technical diagram for complete technical dimensions.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Bar
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Water Saving
: Yes
⤷ Hose Included
: Yes

⤷ Hose Length
: 1500
⤷ Configuration
: Valve, Slide Rail And Handset Kit
⤷ Temperature Control
: Thermostatic
⤷ Compliance/Approvals/Standard
: TMV2
⤷ Product Type
: Shower Set
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes
⤷ Rail Length
: 650

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £126.00 2 Working Days Approx QS Supplies

9 Features Included In This Product Explained

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Decor Smart

In an attempt to keep your decor as neat as before, the unit has a design that will easily fit into the existing holes and fixings as your old shower.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Eco-Friendly

This feature saves you more on water consumption and bills. These showers save as much water as possible while showering without feeling low water pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Reviews & Ratings

By: Trevor From : Scarborough Overall Rating: Date: July 5, 2015 Stylish, good quality, does the job

My only complaint about this product is that the small grub screws that secure the shower head rail wall brackets to the back plate don't tighten up very well, and there is some movement (I guess the brackets don't fit tight to the wall). Otherwise, the operation of the shower is good, with good temperature control (we have a combi boiler supplying the hot water to the shower).

Helpful?
