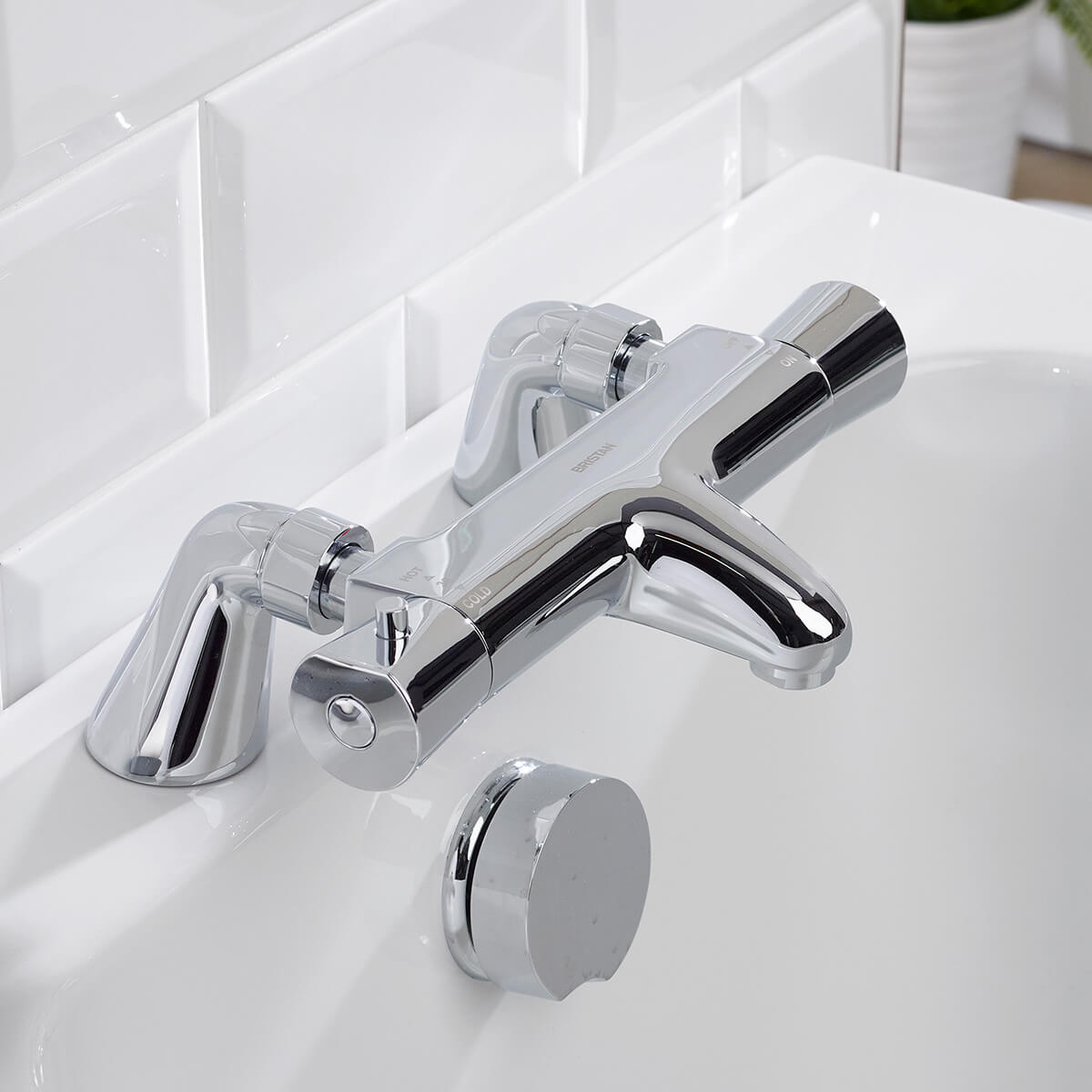

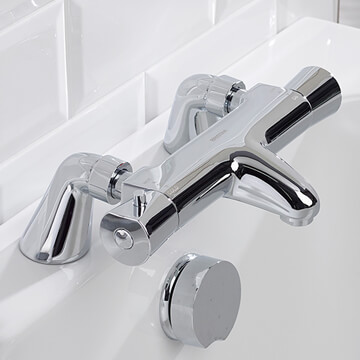

Bristan Artisan Chrome Thermostatic Bath Filler Tap

Bristan Artisan AR2 THBF C Details

Introduce a lavish and ultra-chic creation to your bath in the form of Artisan Thermostatic Bath Filler Tap, presented by Bristan. The glitzy bath adornment will not only enhance the elegance of your bathtub but also give comfortable bathing moments every morning. Intricate and opulent, this marvellous brassware reinterprets the tubular trend magnificently.

Gently flat knob handles with slimline lever handles are brilliantly enhanced by the chrome finish. The shimmering finish makes it perfect for dressing up your vibrant bathtubs, adding a radiant touch of glamour to your decor. Featuring dual control, the tap controls the flow and temperature, separately. So get this bath filler tap today and enjoy every bathing moment.

Available in 2 variations: Peg handle and Lever handle.
It comes in a chrome finish.
Deck mounted installation.
Inlet centres: 180mm - (18cm).
Base to spout: 38mm - (3.8cm).
Width: 260mm - (26cm).
Centre of the inlet to centre of outlet: 184mm - (18.4cm).
Connection Inlet: 1/2 inch.
Connection Outlet: G3/4 inch.

Dual control - flow and temperature are controlled separately.
Valve/Cartridge Type: 1/4 turn 1/2 inch ceramic disc valve.
The pre-set maximum temperature at 38°c can be overridden by the user.
Can be wall-mounted using WMNT10 C.
Suitable for medium and high-water pressure.
Requires minimum 0.5 bar to maximum 5.0 bar water pressure.
Download the Installation Instruction PDF File From The Additional Info Section.
Refer to the technical diagram for complete technical dimensions.

Info / Size (mm)

Tap
Pipe Centre: 180 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Artisan
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Valve Included
: Yes
⤷ Base To Spout
: 38
⤷ Spout Reach
: 134

⤷ Inlet Centres
: 180
⤷ Overall Height
: 78
⤷ Width
: 260
⤷ Inlet Connections
: G 3/4 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Handle Style
: Knob
⤷ WRAS Approved
: Yes
⤷ Barcode
: 5014868027425
⤷ Product Type
: Bath Filler Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £232.92 2 Working Days Approx QS Supplies

7 Features Included In This Product Explained

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

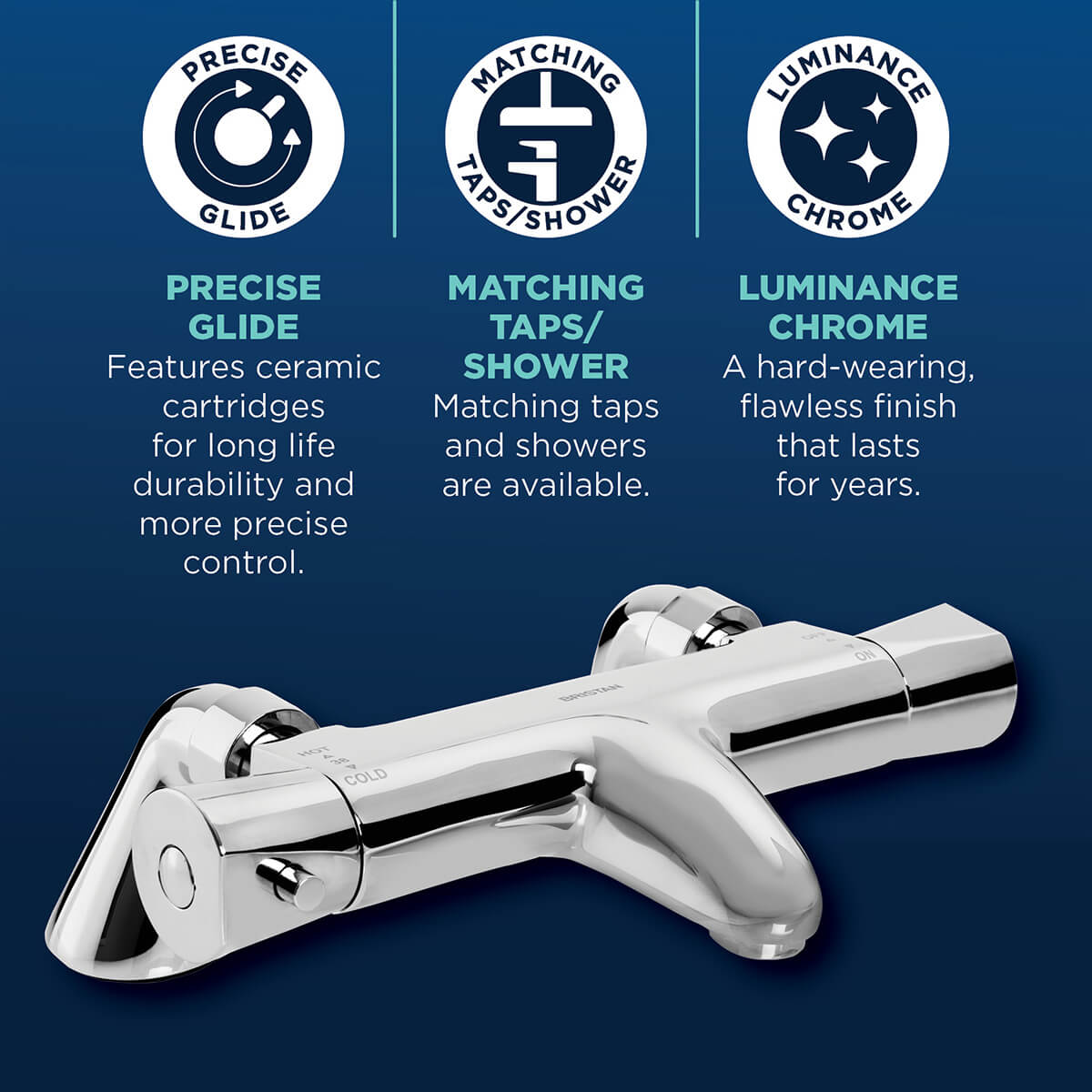

Precise Glide

It comes incorporated with ceramic cartridges for long life with precise control for smooth, leak-free use.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

Secure Fix

The design features metal fixings that secure your tap, preventing any movement or rotation during use.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

Reviews & Ratings

By: Martin From : Scawby Overall Rating: Date: October 24, 2020 Awesome

We used to have the standard mixer taps on our bath and my wife and I got fed up playing around adding hot or cold water to our bath trying to get it just right. It drove me mad. So I looked for a thermostatic bath tap and found this. It's awesome It took a couple of attempts to get the temperature set just right to suit both me and the wife but now it's set, it's easy. Turn the tap on full and ask the smart speaker to set for 8 minutes. I walk in, turn the tap off and jump in. Perfect.
