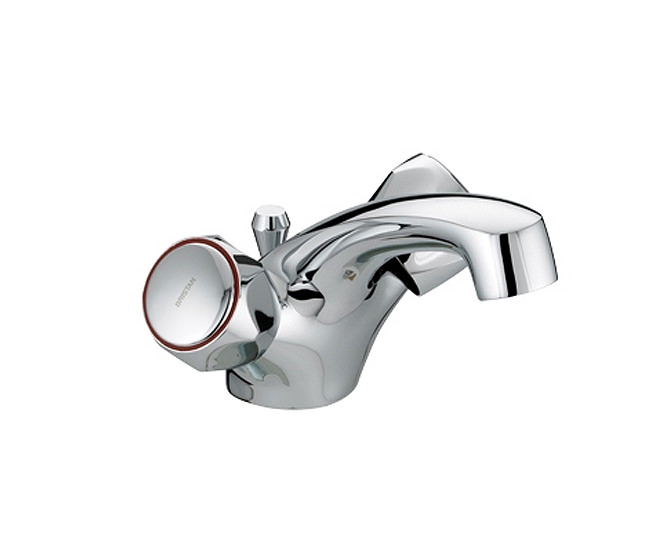

Bristan Value Club Dual Flow Chrome Basin Mixer Tap With Pop Up Waste

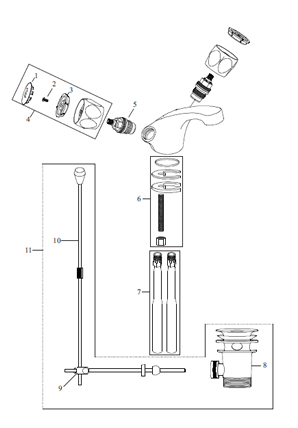

Technical drawing QS-V52187 / VAC DFBAS C MT

£78.36

STOCK AVAILABILITY

2 Working Days Approx

5.0 out of 5

Based on 1 Ratings.

Shipping: £7.95

Key Features

✔Manufactured using high-quality brass material
✔Metal fixing nut for added durability
✔WRAS approved
✔Five years of guarantee against any manufacturing defects

QTY

SKU Code: QS-V52187

Bristan Value VAC DFBAS C MT Details

Dramatically change the look of your bathroom sink with the addition of Value Club Basin Mixer Tap, brought to you by Bristan. The dual-flow tap with pop-up waste makes your bathroom sink more attractive and pleasant due to its design and flawless finish. Embodying the beauty of nature with its double modern design, this delicate, mixer works efficiently as well. It is made from brass and finished in chrome, to provide lasting appearance and durability. Convenient to use, this master creation is reasonably priced and backed with a five-year guarantee from the manufacturer, against manufacturing defects.

Manufacturing code of this product - VAC DFBAS C MT.
It comes in a chrome finish.
Height: 100mm - (10cm).
Base to spout: 70mm - (7cm).
Centre of the inlet to centre of outlet: 100mm - (10cm).

Metal handles.
Dual flow prevents hot water from entering the mains supply.
Suitable for low and high-water pressure.
Requires minimum 0.2 bar to maximum 5.0 bar water pressure.
Refer to the technical diagram for complete technical dimensions.

Info / Size (mm)

Tap
Pipe Centre: 123 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Range
: Value
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes

⤷ Handle Material
: Metal
⤷ Base To Spout
: 70
⤷ Overall Height
: 100
⤷ Width
: 154
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Waste Type
: Pop-Up
⤷ Flow Rates (l/min)
: 0.2 bar - 9.1, 0.4 bar - 12.9, 1 bar - 20.5, 2 bar - 29.1
⤷ Handle Style
: Knob
⤷ WRAS Approved
: Yes
⤷ Waste Included
: Yes
⤷ Barcode
: 5014868001647
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Fitting Instructions / Contents List Pdf File

Total: £78.36 2 Working Days Approx QS Supplies

2 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Secure Fix

The design features metal fixings that secure your tap, preventing any movement or rotation during use.

You've Selected which adds to a total of

Reviews & Ratings

Rate this Item.:

Hide All Reviews

By: Anand From : SALE Overall Rating: Date: November 27, 2017 dual flow basin mixer

with a gravity fed system, we had low pressure hot water and higher pressure (mains power cold water). The normal mixer taps on the market did not work with this unbalanced pressures. The plumbing forum recommended this product and we were not disappointed as it is not affected by unequal pressures - the tap does the job for us very well

Helpful?

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 4 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

D.E.DONOVAN Asked :
DIMENSION OF OUTSIDE EDGE OF HOT TAP TO OUTSIDE EDGE OF COLD TAP.

Answered By QS Team

The widest point's measurement across the handles of the tap is approximately 154 mm.

Was this answer helpful?

Stuart Asked :
Is the Bristan club monobloc basin mixer suitable for unbalanced water pressures, low pressure hot and high pressure cold?

Answered By QS Team

This tap would ideally require balanced hot and cold pressures, however it should work as long as the hot is not less than 0.2 bar.

Was this answer helpful?

Anand Asked :
I have a bathroom washbasin with a mains cold water supply and a gravity-fed system hot water supply. Previously I had two separate taps that worked fine. Now having difficulty with mixers as the hot water flow gets reduced. I am told that I should go for a dual flow-type mixer valve - is the Bristan Value Club Dual Flow Basin Mixer Tap With Pop Up Waste - VAC DFBAS C MT a suitable product? Is there a separate flow of hot water through the tap, and will there be a good hot water flow?

Answered By QS Team

We can confirm the basin mixer is Dual Flow meaning there are separate feeds for the hot and cold supplies. For more information, please download the installation PDF file from the Additional Info tab of the product for VAC DFBAS C MT, or you can download it directly from here.

Was this answer helpful?

Richard Asked :
Is this tap a true dual flow item, i.e. mixes only at the end of the spout, not in the tap's body? This is important as I don't want the mains cold water going back up the hot pipe! Thank you

Answered By QS Team

We can confirm the VAC DF BAS C MT is a Dual Flow product, and the water would come out of the tap in two separate streams and will not mix in the tap's spout.

Was this answer helpful?
