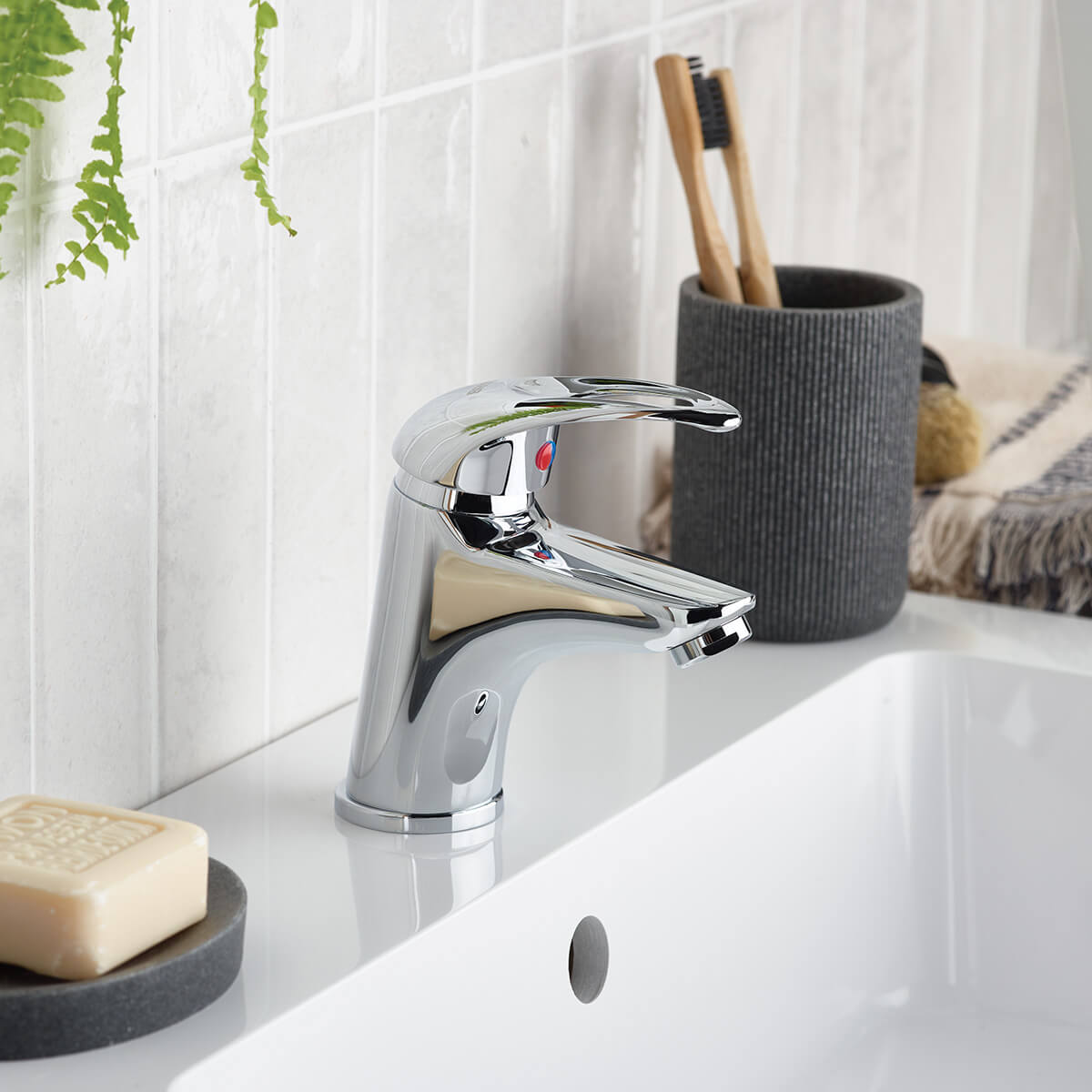

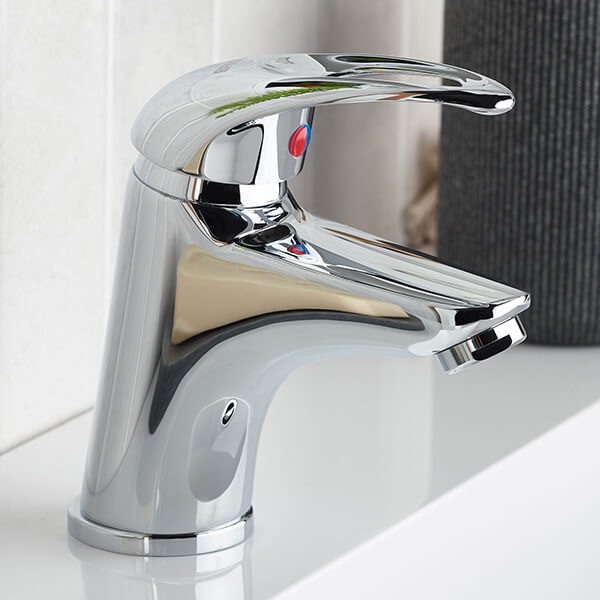

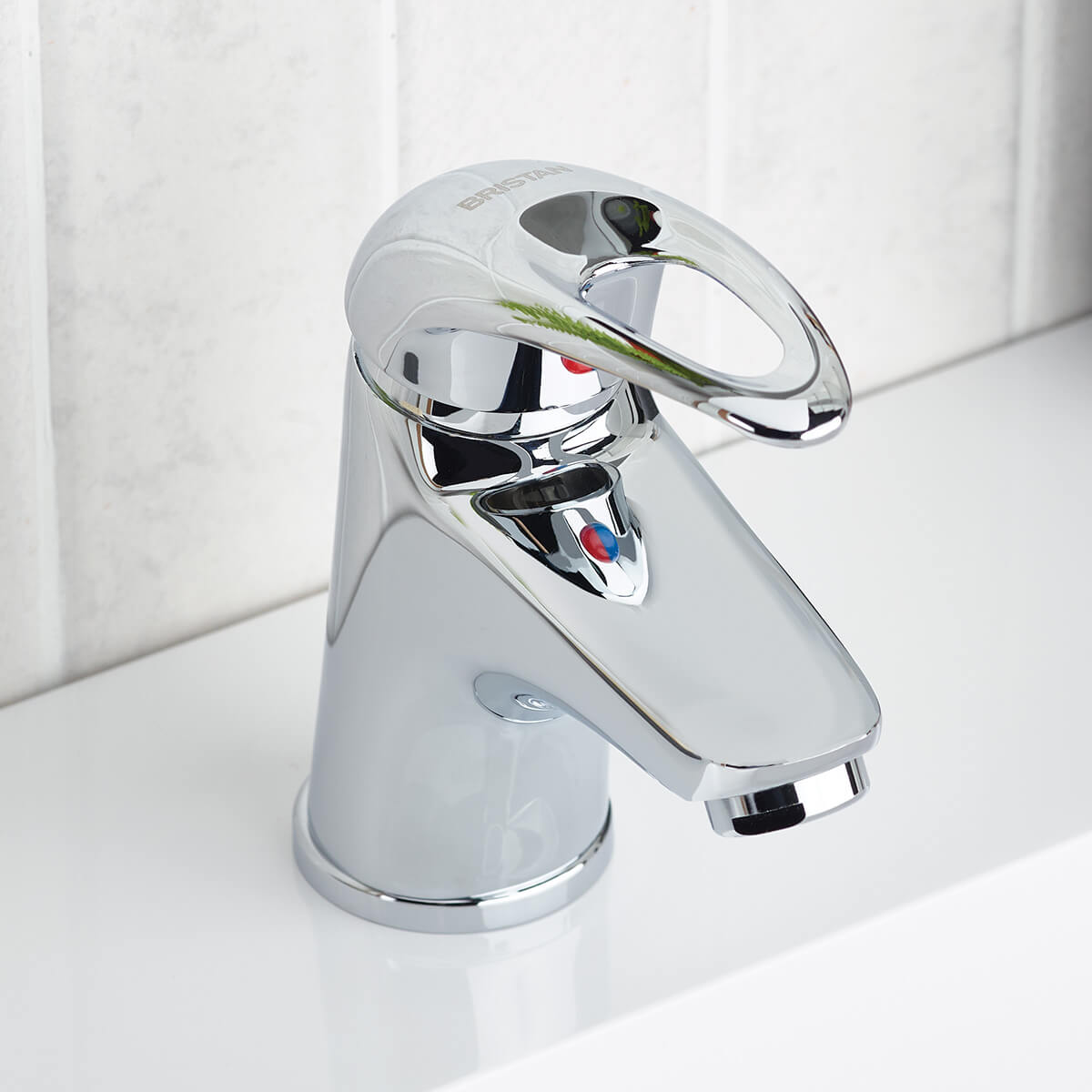

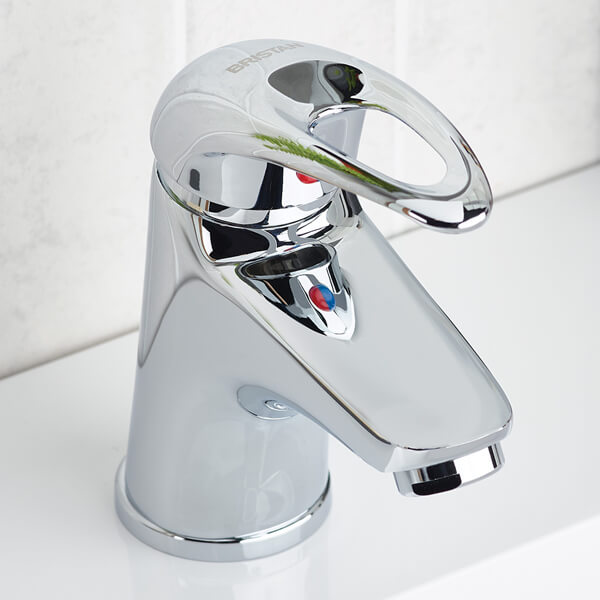

Bristan Java Cloakroom Chrome Basin Mixer Tap With Clicker Waste

Bristan Java J SMBAS C Details

Endow yourself with delightfully refreshing freshening up moments by sealing the purchase decision on this Cloakroom Basin Mixer Tap with Clicker basin waste which comes from the trendy Java range of Bristan. Produced from high-quality brass material to the highest standards, this aqua adornment will deliver excellent performance. A luscious chrome finish accentuates its smooth curved body and single-looped lever handle.

Elegant and inspiring, the mixer tap will warm your heart and play partner to an equally stunning basin, so choose with care from the many choices we offer. It is suitable for low-water pressure systems and works with all plumbing systems. This unit is fully supported with a 10-years manufacturer guarantee against any manufacturing defects.

The manufacturing code of this product is J SMBAS C.
Contemporary design.
Height: 130mm - (13cm).
Base to spout : 60mm - (6cm).
Centre of the inlet to centre of outlet: 84mm - (8.4cm).
Supplied with clicker waste.
It comes in a chrome finish.
Handle type: Single lever.
Inlet Connection: M10 x 15mm screw-in copper tails.
Number of tap holes required: 1.
Valve/cartridge type: 35mm ceramic cartridge.
Suitable for low water pressure system.

Requires a minimum of 0.2 bar to a maximum of 5.0 bar of water pressure.
Maximum hot water temperature: 65°C.
Suitability for all plumbing system.
Maximum dynamic pressure: 5 bar.
Maximum static pressure: 10 bar.
Flow type: Single.
Outlet connection: M24 flow straightener.
Easy-to-use lever handle.
Metal fixing nut for added durability.
Refer to the technical diagram for the complete technical dimension.
Download the Installation Instruction PDF File From The Additional Info Section.

Info / Size (mm)

Tap
Pipe Centre: 84 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Java
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc

⤷ Base To Spout
: 60
⤷ Spout Reach
: 84
⤷ Inlet Centres
: M10 x 15mm Screw-n Copper Tails
⤷ Overall Height
: 130
⤷ Width
: 50
⤷ Minimum Operating Pressure (Bar)
: 0.2 Bar
⤷ Waste Type
: Clicker
⤷ Flow Rates (l/min)
: 0.2 bar - 4.5 Ltr
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Waste Included
: Yes
⤷ Barcode
: 5014868710099
⤷ Product Type
: Cloakroom Tap

Additional Info & Downloads

Download the Fitting Instructions / Content List Pdf File

Total: £79.97 2 Working Days Approx QS Supplies

4 Features Included In This Product Explained

Precise Glide

It comes incorporated with ceramic cartridges for long life with precise control for smooth, leak-free use.

Secure Fix

The design features metal fixings that secure your tap, preventing any movement or rotation during use.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Howard Asked :
Hi I have an existing Bristan JAVA mono basin mixer JSMBASC from 2003 which I need to replace. It has a pop-up waste with the pop-up pushrod at the rear of the tap. The measurements look very similar to this tap. Does it actually have the pop-up rod at the rear of the tap as Bristan only seem to offer these with clicker waste? Thanks for your help

Answered By QS Team

We can confirm that the measurements of the Bristan taps are the same. However, the new version of the tap does include a clicker waste and not a pop-up waste. This means that there is no longer a rod at the back of the tap.
