Reina Colona 500mm High Horizontal 2 Column White Radiator

Reina Colona 2/C513 Details

Never sacrifice the look of your space for its warmth when you can have the Reina Colona High Horizontal Radiator, a heating appliance that gives you the best of both worlds. The radiator is fashioned out of high quality steel that won't easily show signs of wear and tear, even with frequent use. The finish is a neutral white to make it easy to incorporate into your living space with any colour scheme. The unit is suitable for central, electric, dual fuel heating systems.

Key Features

✔Manufactured using steel material
✔Supplied with Air vent and End plug
✔Brackets for radiator included
✔Five years guarantee against manufacturing defects

Available in different widths: 605mm, 785mm, 1010mm and 1190mm - [Optional].
Available variants: Central heating, Dual Fuel and Electric - [Optional].
Choice of Heating element available - [Optional].
Horizontal 2-column radiator.
It comes in a white finish.
Height: 500mm (50cm).
Distance from wall: 98mm (9.8cm).
Wall to pipe centres : 66mm (6.6cm).
Heat Output is measured at 70°C.

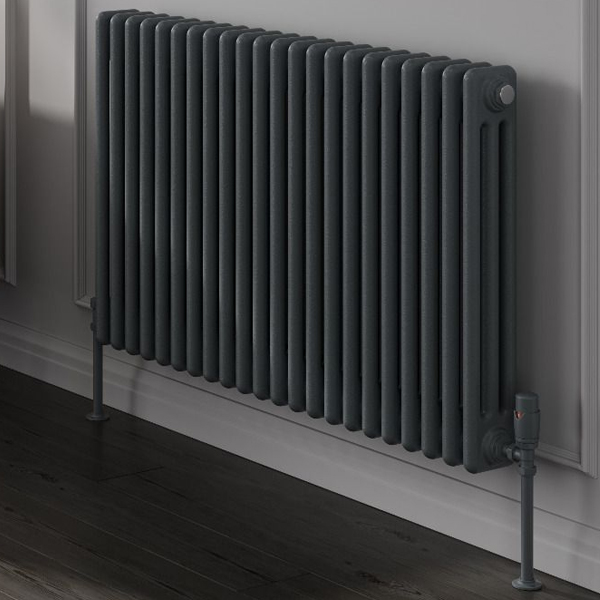

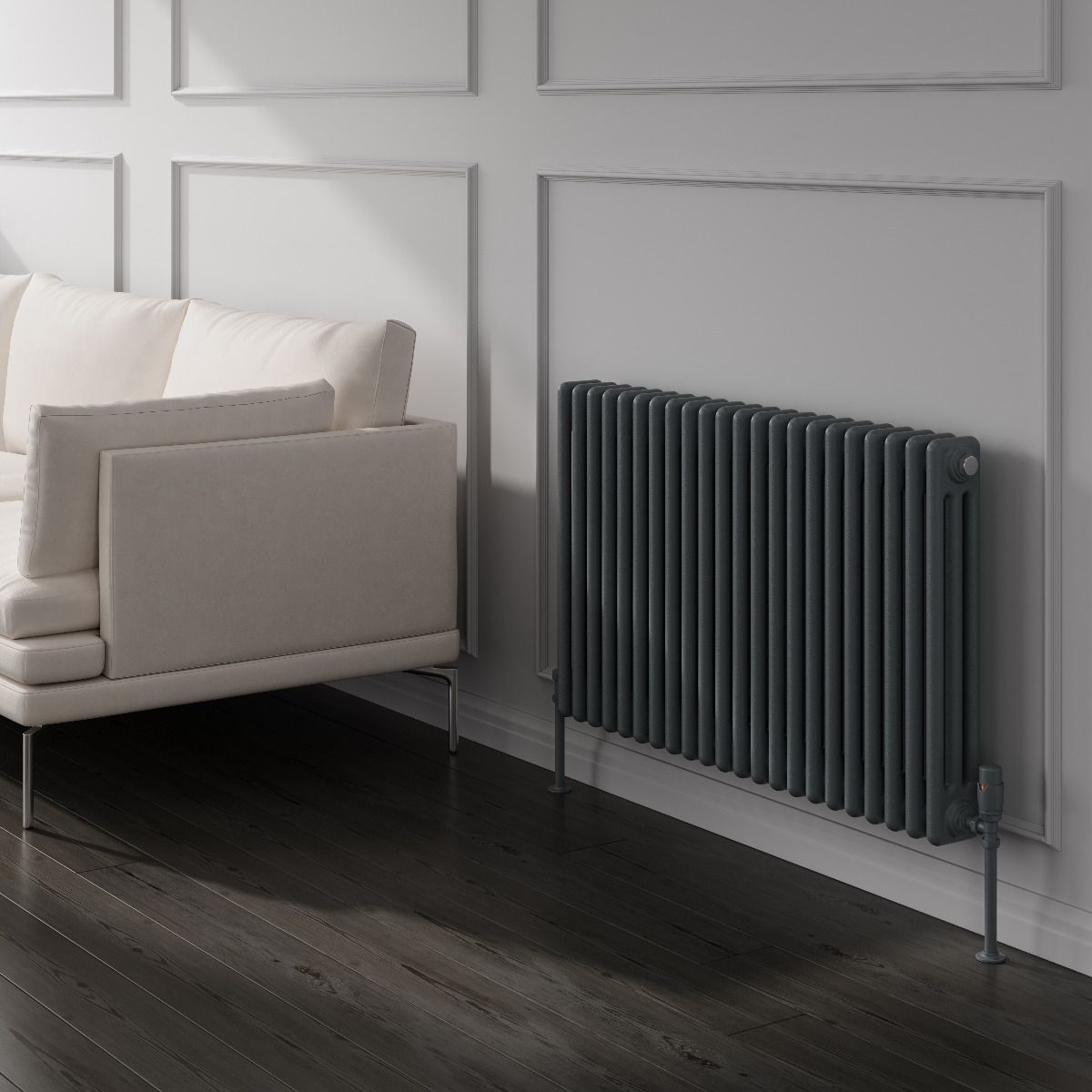

The image shown is for illustration purposes only.

The valves shown in the image are not included.
Insertable feet for radiator - [Optional].
For BTU, Watts and more details, please refer Product Variations Info & MFC Code section.
EN 442 Compliant Product.
For BTU, Watts and other information, Please refer the.
For Central Heating And Dual fuel, Radiator valves are highly recommended.
Refer to Compatible Valves available in the product.
For the Dual Fuel, Heating Elements are highly recommended in combination with T-Piece.
For Electric models, Optional Liquid Filling is required with the heating element.
For more details, please refer to the Product Variations Info and MFC Code table given below.

Please Note: The appropriate wattage of the element if selected will be decided by the manufacturer, once the order is placed.

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Colona
⤷ Colour
: White
⤷ Shape
: Curved
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Steel
⤷ Installation Type
: Floor Standing
⤷ Width
: 1010
⤷ Height
: 500
⤷ Orientation
: Horizontal
⤷ Barcode
: 5081304262276

⤷ BTU Output
: 4300
⤷ Watts
: 1261
⤷ No. Of Bars
: 22
⤷ Tapping / Pipe Centres
: 1010
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating | Dual Fuel | Electric
⤷ Wall to Centre of Inlet
: 66
⤷ Heating Element Included
: Sold Separately
⤷ Element Type
: Standard | Thermostatic
⤷ Brackets Included
: Yes
⤷ No. of Columns
: 2

Additional Info & Downloads

Download the Heating Element Manual Instructions Pdf File Download the Details Of Heating Elements Pdf File

Total: £151.27 4 Working Days Approx QS Supplies

Product Variations Info & MFC Code

Width	605mm	785mm	1010mm	1190mm
Tube Qty	13	17	22	26
Pipe Centres	605mm	785mm	1010mm	1190mm
Wall To Pipe Centres	66mm	66mm	66mm	66mm
Wall Distance	98mm	98mm	98mm	98mm
Watts - Delta-70	745	974	1261	1490
BTU - Delta-70	2540	3322	4300	5081
BTU - Delta-60	2082	2723	3525	4165
BTU - Delta-50	1639	2143	2774	3278
BTU - Delta-45	1427	1866	2416	2854
BTU - Delta-40	1233	1613	2087	2467
BTU - Delta-35	1033	1350	1748	2065
BTU - Delta-30	838	1096	1419	1677
BTU - Delta-25	326	427	553	653
MFC	2/C513	2/C517	2/C522	2/C526

3 Features Included In This Product Explained

Optional: Radiator Valve

Radiator valves help control how much hot water enters and leave it, and the flow of water controls how much heat the radiator generates. These are usually found at the radiator's bottom left, and right corners, where the water pipes enter and exit, or can also be present at the bottom near the centre.
Read more...

Central Heating

'Standard' radiators and towel warmers are connected to your central heating system, so hot water flows through them to heat them.
Read more...

Optional: Dual Fuel

These radiators or towel warmers can run on a conventional gas-powered central heating system or via your mains electrical supply. You can choose whether or not you want your radiator or towel warmer to come on independently of your central heating system, which is especially useful in summer. These radiators are compatible with heating and hot water, whether the system is open (direct) or closed (indirect).
