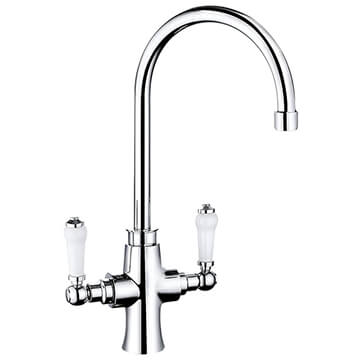

Rangemaster Cruciform Spa Chrome Dual Lever Monobloc Filter Water Tap

Rangemaster Cruciform TSA5CM/ Details

Rangemaster believes in giving you a wide choice and utility in kitchen brassware. This Cruciform Filter Tap is the latest creation with style and luxury. The tap in stunning chrome finish is perfect for any modern or classic design settings. The dual control faucet, made from high-quality stainless steel is exceptionally durable and features filter system, which reduces impurities found in regular tap water. It is easy-to-install as well as use and carries a 5-year guarantee from the manufacturer.

Features and Specifications:.
Deck-mounted installation.
Contemporary design.
Overall height is 392mm [39.2cm].
Spout reach is 216mm [21.6cm].
The base to spout is 265mm [26.5cm].
The spout has a rotation range of 360 degrees.
Instant filtered drinking water.
Requires a minimum for smooth working is 0.2 bar [LP-Low Pressure], to a maximum of 5.5 bar water pressure.
The mixed flow rate at 3 bar is 26.16 Litre/min.
Tap is suitable for all bar pressure.
Recommended hot water temperature is 46 degrees Celsius, and the Maximum hot water temperature is 70 degree Celsius.
Half-turn handle control.

Ceramic disc cartridge.
Honeycomb aerator.
Copper rigid tubes inlet pipes.
Tap has an anti-splash spout.
Reducing the impurities found in regular tap water [filter removes all additives from the water, such as chlorine, to create refreshing, crystal clear drinking water directly].
Co-ordinates with a water filter under the sink for pure-tasting water.
Pull the cold lever forward for mains water for washing up, regular water requirements and back for filtered water [diverter directs mains water through an effective, specialist filter cartridge, compactly positioned under the sink].
Simplicity in function, installation through push-fit connectors, hassle-free maintenance with replacement filter cartridge.
DDA [Disability Discrimination Act] compliant, meaning that it can be turned on and off using a clenched fist.
Images shown are only for illustration purposes.
Refer to the technical drawing for more technical information.
Download the Installation and Aftercare Instruction PDF from the Additional Info Section.

Info / Size (mm)

Tap
Pipe Centre: 216 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Cruciform
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Country of Origin
: UK
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Stainless Steel
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Swivel
⤷ Valve/Cartridge Type
: Ceramic Cartridge Type

⤷ Spout Swivel
: 360 Degree
⤷ Base To Spout
: 265
⤷ Spout Reach
: 216
⤷ Overall Height
: 392
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Flow Rates (l/min)
: 26.16
⤷ Handle Style
: Stick
⤷ Spout Flow
: Dual
⤷ Compliance/Approvals/Standard
: DDA
⤷ Barcode
: 5015834045948
⤷ Product Type
: Kitchen Mixer Tap
⤷ Water Filter
: Yes

Additional Info & Downloads

Download the Installation and Aftercare Instruction Pdf File Download the Product Data Sheet Pdf File

Total: £269.64 10 Working Days Approx QS Supplies

8 Features Included In This Product Explained

All Pressure Taps

All Pressure taps are compatible for use with all plumbing systems, including low-pressure hot water tanks. These taps can be identified with the 'A' symbol.

Anti-Splash Spout

The spout comes with a honeycomb aerator that mixes air with water and gives a bubbly ‘champagne-like’ water flow, reducing splashes.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. It contains a minimum of 10.5% of chromium and less than 1.2% of carbon and other metal alloys. Its corrosion resistance and mechanical properties can be improved by adding nickel, molybdenum, titanium, niobium, or manganese. This robust, hygienic, hard-wearing base material is popular in the construction of steel products.

Swivel-Spout

The respective apparatus is engineered with the ability to move sideways or at certain angles, which helps them cover a greater area than would be possible in a stationary position.

Monobloc Tap

A Monobloc/Mono tap has a single control lever that adjusts the mix of hot and cold water supplies and the flow rate. A mixer tap has two separate controls for hot and cold water. Both work equally well, and your choice will come down to aesthetics and how many tap holes your sink has. Monobloc taps are a neater solution and more modern in appearance.

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Denise Asked :
What is included with the cruciform spa filter tap is the under sink filter included?

Answered By QS Team

We confirmed with the manufacturer that a filter is provided.

Was this answer helpful?

David Asked :
Have you got any instructions or dimensions of the valve, height, spout reach, and thickness of the worktop it can be fitted to? We are looking at fitting it to a 30mm granite worktop with an undermount sink. Size-wise, looking at something like the Franke Eiger. Thanks

Answered By QS Team

Hi David, The full height of the tap from the base to the top of the spout is 392mm. The reach is 216mm, and the height from the base to the spout end is 265mm. The Control valve type is 1/2" Quarter turn ceramic disc and the max surface fixing depth is 50mm.
