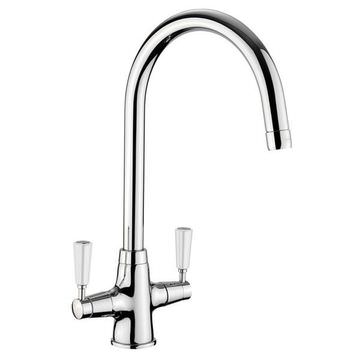

Rangemaster Aquaclassic Spa Dual Lever Monobloc Filter Water Tap

Rangemaster Aquaclassic TSA4CM/ Details

This Aquaclassic Spa Filter Mixer Tap comes to you from the house of Rangemaster. The striking creation adds a contemporary touch to your kitchen. Polished in chrome finish, this deck mounted monobloc filter water tap would be the centerpiece of your beloved kitchen. It looks very expensive, but it is affordable in price. It features a spa filter that reduces the impurities found in regular tap and can be replaced smoothly, when required. Suitable to work with both high and low water pressure system this faucet comes with a 5 year guarantee from Rangemaster.

The manufacturing code is TSA4CM/.
Features and Specifications:.
It comes in a chrome finish with white lever handles.
Swivel spout.
Deck mounted installation.
Traditional design.
Overall height is 392mm.
Spout reach is 216mm.
The base to spout is 265mm.
Spout has a rotation range of 360 Degrees.
Instant filtered drinking water.
The minimum water pressure recommended for smooth working is 0.2 bar [LP-Low Pressure], and the maximum is 5.5 bar.
The mixed flow rate at 3 bar is 26.16 Litre/min.

Dual flow type.
Suitable for all bar pressure.
Recommended hot water temperature is 46 Degrees Celsius, and the Maximum hot water temperature is 70 Degrees Celsius..
Half-turn handle control.
Ceramic disc cartridge.
Copper rigid tubes inlet pipes.
Reducing the impurities found in regular tap water [filter removes all additives from the water, such as chlorine, to create refreshing, crystal clear drinking water direct].
DDA [Disability Discrimination Act] compliant, meaning that it can be turned on and off using a clenched fist.
Co-ordinates with a water filter under the sink for pure-tasting water.
Pull the cold lever forward for mains water for washing up, regular water requirements and back for filtered water [diverter directs mains water through an effective, specialist filter cartridge, compactly positioned under the sink].
Refer to the technical image for more technical information.
Download the Installation and Aftercare Instruction PDF from the Additional Info Section.
Images shown are only for illustration purposes.

Info / Size (mm)

Tap
Pipe Centre: 216 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Aquaclassic
⤷ Water Activation
: By Rotating
⤷ Handle Position
: Left & Right
⤷ Colour
: Chrome
⤷ Country of Origin
: UK
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Stainless Steel
⤷ Theme
: Traditional
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Swivel
⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge

⤷ Spout Swivel
: 360-Degree
⤷ Base To Spout
: 265
⤷ Spout Reach
: 216
⤷ Overall Height
: 392
⤷ Minimum Operating Pressure (Bar)
: 0.2 Bar
⤷ Flow Rates (l/min)
: 3 Bar - 26.16
⤷ Handle Style
: Stick
⤷ Spout Flow
: Dual
⤷ Compliance/Approvals/Standard
: DDA
⤷ Barcode
: 5015834041179
⤷ Product Type
: Kitchen Mixer Tap

Additional Info & Downloads

Download the Installation and Aftercare Instruction Pdf File Download the Product Data Sheet Pdf File

Total: £259.94 10 Working Days Approx QS Supplies

9 Features Included In This Product Explained

Monobloc Tap

A Monobloc/Mono tap has a single control lever that adjusts the mix of hot and cold water supplies and the flow rate. A mixer tap has two separate controls for hot and cold water. Both work equally well, and your choice will come down to aesthetics and how many tap holes your sink has. Monobloc taps are a neater solution and more modern in appearance.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. It contains a minimum of 10.5% of chromium and less than 1.2% of carbon and other metal alloys. Its corrosion resistance and mechanical properties can be improved by adding nickel, molybdenum, titanium, niobium, or manganese. This robust, hygienic, hard-wearing base material is popular in the construction of steel products.

Dual Flow

A dual-flow tap dispenses water in a single stream like any other tap; however, the inner working of the tap is different. Inside the tap body, hot and cold water flows separately and is mixed only once it leaves the tap body, preventing the spout from becoming scalding hot. Plus, there are minimal chances of backflow due to the separate hot and cold feeds.

All Pressure Taps

All Pressure taps are compatible for use with all plumbing systems, including low-pressure hot water tanks. These taps can be identified with the 'A' symbol.

Anti-Splash Spout

The spout comes with a honeycomb aerator that mixes air with water and gives a bubbly ‘champagne-like’ water flow, reducing splashes.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Swivel-Spout

The respective apparatus is engineered with the ability to move sideways or at certain angles, which helps them cover a greater area than would be possible in a stationary position.
